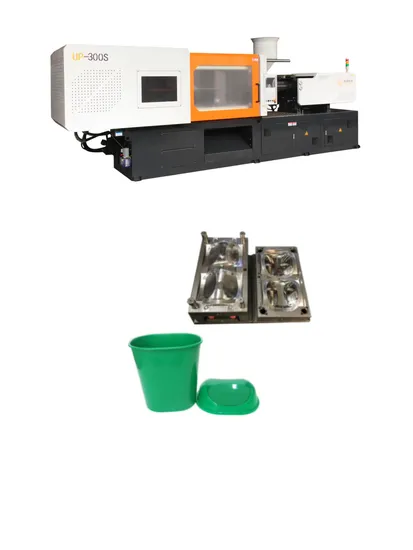

Innovative up-300 PVC Pipe Molding Machine with High System Pressure

Product Description

Ningbo Union Power Machinery Co., Ltd.
Welcome to Ningbo Union Power Machinery Co., Ltd.
Located near Shanghai, our factory specializes in manufacturing injection molding machines, molds, and auxiliary equipment. Our injection molding machines range from 50 to 3000 tons with a tensile resistance of up to 40000 g. Our machine family includes:
Standard Injection Molding Machine
PVC Injection Molding Machine
PET Injection Molding Machine
Two-Color Ejector
Fully Hydraulic Injection Molding Machine
All-Electric Injection Molding Machine
China Servo Injection Molding Machine
Key Features:
Modulus of Capacitance: Ensure precise positioning, size, and maximum allowable modulus of capacitance for the injection molding machine guide pillar.
Nozzle Parameters: Consider the spherical diameter, aperture, outer diameter, extension length, and positioning aperture of the nozzle.
Code Mold Parameters: Specify the mold hole and slot size for efficient molding.
Ejection Mechanism: Determine the ejection point, ejector rod diameter, force, and stroke as needed.
Mold Opening Stroke: Optimize mold opening stroke and maximum opening distance for seamless operation.
Trust Ningbo Union Power Machinery Co., Ltd. for high-quality injection molding solutions tailored to your needs.

Technical Parameters	Model UP-300T
Injection Unit	A	B	C
Screw diameter (mm)	60	65	70
Shot Volume (cm3)	806	946	1096
Injection weight (g)	725	851	987
injection pressure (Mpa)	170	145	107
Screw speed (rmp)	220
Clamping Unit
Clamping force (KN)	3000
Open stroke (mm)	600
Max Mold height (mm)	620
Min Mold height (mm)	200
Space between tie bars(mm)	620*620
Ejector force (KN)	70
Ejector stroke (mm)	150
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	30(29)
Heating power (KW)	18.5
Machine dimension (M)	6.3*1.75*2.37
Machine weight (T)	9.3
Oiltank cubage (L)	400

---
