High Output Five Layers PE Air Bubble Film Roll Wrap Sheet Making Machine

Product Description

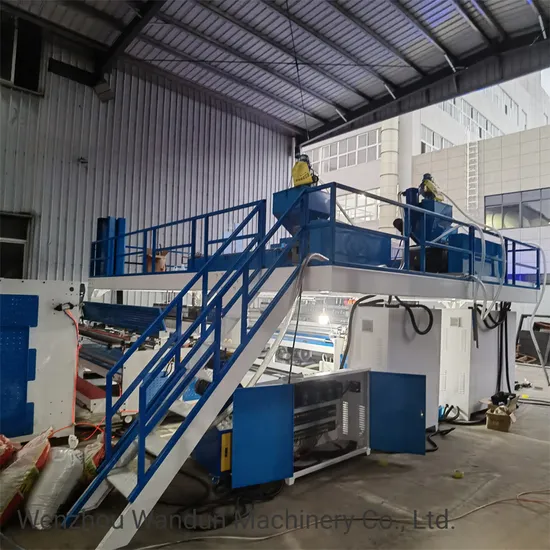

High output five layers pe air bubble film roll wrap sheet making machine

Product Introduction:
1. Main parts: 2 Extruders, Control Panel, Bubble forming section, Winder;
2. To produce 5 layers air bubble film (laminated layer + PE front layer + bubble layer + base layer + laminated layer);
3. The laminated layer can be aluminized foil, MPET foil, kraft paper, EPE foam, BOPP film etc.;
4. Film width from 1,000mm to 3,000mm;
5. Screw L/D ratio is 1:30, it adopts special mixing function and high plasticizing capacity design, with good plasticization, good mixing effect and high output;
6. The bubble forming cylinder adopts special internal circulation chilled water design to ensure perfect bubble forming effect under high speed operation
Mechanical Transmission Diagram & Bubble Structure:
Main Technical Variables:

Model	WT100-5T	WT120-5T	WT160-5T	WT200-5T	WT250-5T	WT300-5T
Max width mm	1000	1200	1600	2000	2500	3000
Screw diameter mm	55/55/55	55/55/55	65/65/55	75/75/65	85/85/75	90/90/80
Main motor power kw	15/15/15	15/15/15	22/22/15	30/30/22	37/37/30	37/37/30
Capacity Kg/hr	65-135	85-140	100-180	160-230	180-270	200-290
Line speed M/hr	800-1800	800-1800	800-1800	800-1500	800-1500	800-1500
Heating power kw	83	83	95	112	143	150
Running power kw	47	49	65	80	90	98
Total power kw	132	140	170	230	280	302
Raw material	LDPE/LLDPE/ Recycle material	LDPE/LLDPE/ Recycle material	LDPE/LLDPE/ Recycle material	LDPE/LLDPE/ Recycle material	LDPE/LLDPE/ Recycle material	LDPE/LLDPE/ Recycle material
Machine Weight kg	7500	8200	9500	10500	12000	13000

WENZHOU WANDUN MACHINERY CO.,LTD. is located in the south of Zhejiang. We are a professional producer of PE air bubble film making machines, film blowing machines, bag making machines, stretch film machines, plastic laminating machines, printing machines, plastic recycling machines, and so on. We have a good team for the R&D, design and sale. Our engineers have more than ten years of experience in plastic industry. We can design the machines according to our clients' requirements. Our main markets are South America, Africa, the Middle East, the EU and Southeast Asia. More than 98% of our products are exported to overseas markets, such as Greece, Croatia, America, Columbia, Dominican Republic, Nigeria, Ethiopia, South Africa, Saudi Arab, Israel, etc. We also provide good after-sales services immediately. The quality and good service are our business principle. You are welcome to visit our factory to have business discussion. We wish we can have great business cooperation together. Q1. What is your terms of packing?
A: The normal package is making a pallet to protect the machine at the bottom and wrap the whole machine with plastic film packing.
If export to EUROPEAN countries,the wooden box will be fumigated. we use PE film for packing or pack it according to customers
special request.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the
quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
