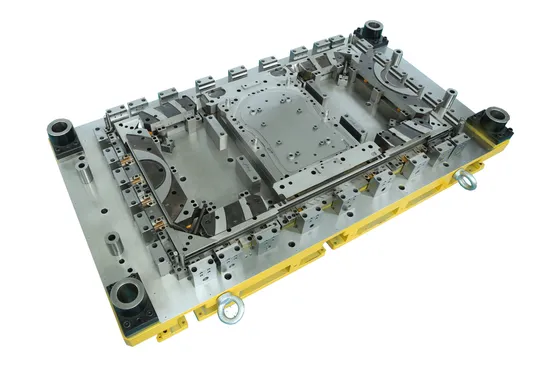

Metal Stamping Die for Front Loading Washing Machine Cabinet

Product Description

Brand	SUNSN or OEM
Mould/Tool Type	Stage tool/mould/die
Production Application	White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
Metal Sheet Material	Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
Mould Material	V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
Mould Base	SD, LKM Standard, HASCO Standard, Self-made, etc.
Tolerance	±0.003mm
Hardness	Upon request
Mould size	Customized size
Mould Life	2 million shots
Surface Treatment	TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
Precision Machining	CNC/ surface grinding machine/ wire cutting/ EDM
Measuring Instruments	CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
Drawing Format	DWG, STP, STEP, X_T, IGES, PDF
Design Software	Auto CAD, UG, Solidworks
Trade terms	FOB (Shanghai)
Payment Terms	T/T, Trade Assurance, L/C
Mould Leadtime	Generally 6~8 weeks (as per actual situation)
Quality management system	ISO 9001

Product Description
1.Cycle: 6~14s (determined by product characteristics)
2.Fast repair within 30 minutes; fast tool change within 15 minutes

3.Punch edge sharpening: after 300,000~500,000 shots
1.Use software to control the movement of each die.
2.To produce drum wrapper, there only needs one set of press table and one set of tools, which can reduce equipment investment.
1.During maintenance or repair, there only needs to dismantle the sub-die needing repairing, without dismantling the whole structure.
2.One set of tools can produce several models. The tool changeover can be realized through program.


FAQ

Q: Are you a factory or trading company?
A: We are a factory which has been producing metal stamping moulds for more than 10 years.
Q: Do you accept OEM/ODM?
A: Yes, of course. We can custom make for you based on your drawing or sample

Q: What are your main products?
A: We specialize in designing and manufacturing sheet metal stamping tools/moulds mostly for household appliance and automobile
industry, CNC machining parts and mould supporting facilities etc.

Q: Do you provide samples? Is it free of charge or extra?
A: Yes, we could offer the samples free of charge but do not undertake the cost of freight.

Q: How can I get the quotation?
A: Normally, we can get back to you within 24 hours when getting your detailed 3D drawing and requirements. If the project include
s many different parts, we will try our best to get back asap.In order to quote for you earlier, please provide us the following
information together with your inquiry.
1) 2D and 3D Drawings (DWG, STP, STEP, X_T, IGES, PDF)
2) Material requirement
3) Surface treatment requirement
4) Quantity (per order/per month/annual)
5) Any special demands or requirements, such as packing, labels,delivery,etc.

Q: What is your design software?
A: CAD, CAXA, UG

Q: What's the delivery time?
A: The stamping tool manufacturing cycle is 30-50Days, standard stamping parts is 3 to 10 days after payment. If OEM or make the
tooling, we will confirm the delivery time with you.

Q: What is your term of payment?
A: Payment 50% T/T in advance, balance before shipment.

Looking for ideal Metal Stamping Tooling Manufacturer & supplier ? We have a wide selection at good prices to help you get creative. All the Automotive Stamping die are quality guaranteed. We are China Origin Factory of Custom Metal Stamping Dies. If you have any question, please feel free to contact us.
Product Categories : Sheet Metal Stamping Dies

---
