Product Description
Product Description
Product Description
Features:

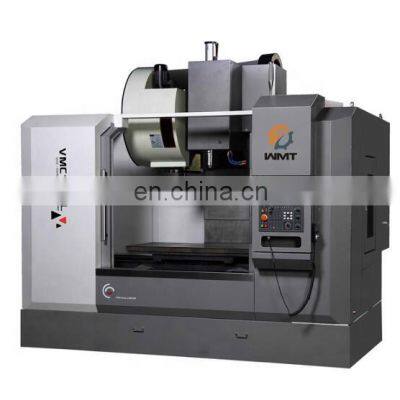

CNC machining center VMC1200L CNC milling machine center Product Application All 3axis use class C3 precision screw,match up the nut preloading and screw prestretched, preeliminate backlash and temperature rise,so that the machine can achieve stability of the positioning and repeatability accuracy. Besides,the X/Y/Z axis use precision linear rails to ensure the control of the positioning accuracy and processing errors,so that the machine can have high accuracy and long working life.
Main Technical Data
Specification
| VMC1200L
|
Worktable size(LxW)
| 1400x700mm
|
T-slot (NxWx D)
| 5x18x115mm
|
X/Y/Z axis travel
| 1200/700/700mm
|
Distance from spindle center to column
| 775mm
|
Distance from spindle nose to worktable surface
| 103-803mm
|
Spindle taper
| BT50
|
Spindle power
| 11/15kw
|
Max.spindle speed
| 6000rpm
|
Max.feed speed
| 12m/min
|
Rapid feed speed(X/Y/Z)
| 24/24/15m/min
|
X/Y/Z axis ball screw
| 4012
|
Tool magazine capacity
| 24t
|
Tool change time(T-T)
| 3/2.5s
|
Positioning accuracy(X/Y/Z)
| ±0.010mm
|
Re-positioning accuracy(X/Y/Z)
| ±0.005mm
|
LxWxH
| 3330x2880x3250mm
|
Max.loading of worktable
| 1000kgs
|
Machine weight
| 10000kgs
|
Products Show
