Basic Info.
Model NO.
SHD125, 160, 210, 260, 310, 360, 410
Processing Object
Animal-Derived Feed
Processing Technics
Mixing-before-Crushing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Roll Crusher
Pellet Mill Type
Flat Die Pelletizer
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Wet Expansion
Applicable Materials Shape
Granular
Transport Package
Wooden Box
Specification
1700*715*1300
Production Capacity
30000et/Year
Product Description
Products Description:

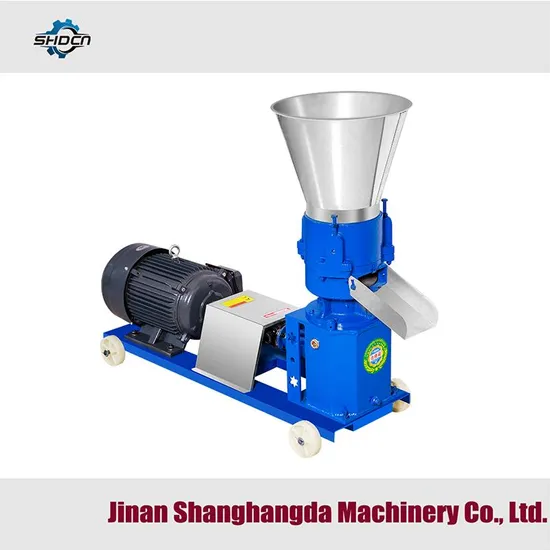

Feed pellet machine (also known as: pellet feed machine, feed pellet machine, pellet feed forming machine) belongs to feed pelleting equipment. It is a feed processing machine that uses corn, soybean meal, straw, grass, rice husks, etc. as raw materials, and directly presses the raw materials into pellets after crushing the raw materials.
Specification:
Model
| Size(MM)
| Weight(KG)
| Capacity(KG)
| Power(KW)
|
SHD125
| 850*450*550
| 80
| 80-100
| 3
|
SHD160
| 850*500*600
| 100
| 150-300
| 4
|
SHD210
| 1000*670*730
| 200
| 400-600
| 7.5
|
SHD260
| 1310*530*920
| 192
| 300-500
| 15
|
SHD310
| 1460*570*1110
| 295
| 500-900
| 22
|
SHD360
| 1500*655*1290
| 700
| 900-1200
| 30
|
SHD410
| 1700*715*1300
| 900
| 1200-1600
| 37
|
Our Advantages: 1. Simple structure, easy to clean and maintain;2. Spare parts are easy to change, less cost for rollers and dies;3. Simple operating, just 1 worker is OK;4. Be able to change new die and rollers faster to save time to produce pellets;5. Small and light weight, which can be used in home, small farm and light industrial field.
Details Images:
Packing & Delivery:
Pelleting molding can be customized.
>>
