Integral Mandrel Sleeve stabilizers

Product Details

Product Description

Product Description

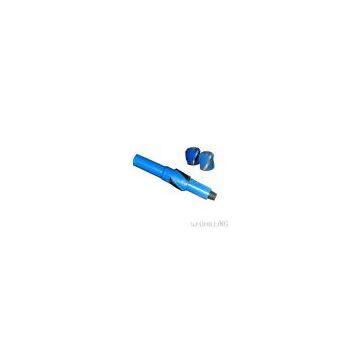

Integral mandrel sleeve stabilizers are made in two parts: One mandrel and one sleeve. The stabilizer is assembled by screwing the sleeve on the body and tightening these on the shoulder. The sleeve has been designed to avoid any accidential back off,also it's easy to be replaced on rig.

Working O.D.	Fising O.D.	Up Conn.	Down Conn.	I.D.	Fishing Length	OAL	Remark
inch(mm)	inch(mm)	API	API	inch(mm)	inch(mm)	inch(mm)	Remark
28	9-1/2	7-5/8REG	7-5/8REG	3	27	78	Near Bit
(711.2)	(241.3)	7-5/8REG	7-5/8REG	(76.2)	(686.0)	(1981.0)	String
26	9-1/2	7-5/8REG	7-5/8REG	3	26	76	Near Bit
(660.4)	(241.3)	7-5/8REG	7-5/8REG	(76.2)	(660.0)	(1930.0)	String
22	9-1/2	7-5/8REG	7-5/8REG	3	26	76	Near Bit
(558.8)	(241.3)	7-5/8REG	7-5/8REG	(76.2)	(660.0)	(1930.0)	String
17-1/2	9	7-5/8REG	7-5/8REG	3	27	67	Near Bit
(444.5)	(228.6)	7-5/8REG	7-5/8REG	(76.2)	(686.0)	(1702.0)	String
12-1/4	8	6-5/8REG	6-5/8REG	2-13/16	24	61	Near Bit
(311.1)	(203.2)	6-5/8REG	6-5/8REG	(71.4)	(610.0)	(1600.0)	String
8-1/2	6-1/2	NC50	4-1/2REG	2-13/16	27	66	Near Bit
(215.9)	(165.1)	NC50	NC50	(71.4)	(686.0)	(1676.0)	String
6	4-3/4	NC38	3-1/2REG	2	27	58	Near Bit
(152.4)	(120.7)	NC38	NC38	(50.8)	(686.0)	(1473.0)	String
5-7/8	4-3/4	NC38	3-1/2REG	2	22	54	Near Bit
(142.9)	(120.7)	NC38	NC38	(50.8)	(559.0)	(1372.0)	String
When ordering or requesting quotation, if size out of above specification, pls. specify clearly.
