Hcm-3200 Honeycomb Paper Core Continuous Forming Machine

Product Description

Full-automatic Honeycomb Core Machine
This machine is the newest type of honeycomb core making machine.It apply glue lines by glue
roller system (traditional gluing) or glue pipe system (new gluing system)to make continous
honeycomb in one stop. Horizontal cutting system, use 7075 alloy aluminum knife frame, for high
speed, high efficiency and low vibrating cutting.
Process of honeycomb making:

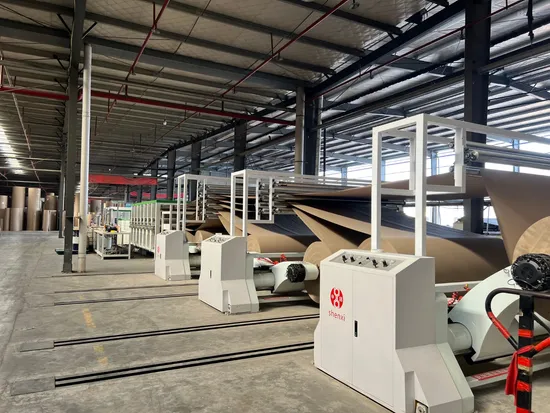

Paper feeder--Flatten--Gluing uint--Drying&rubber roller drive --Cutter--Conveyor.

No.	Item	HCM-1600/2000/2400/2800/3200
1	Thickness of honeycomb core	6-100mm
2	Width of paper core (before expanding)	1600/2000/2400/2800/3200
3	Max. designning cutting speed	820 cuts/min
4	Cutting tolerance	+-0.1mm (with ring crush index over 7.0 Nm/g, thickness less than 50mm)
5	Applicable paper	90-200gsm corrugated paper as core paper(over 200gsm, use 4 layers)
6	Qty of paper reels	6/8
7	Cell size	8-40mm (according to customer choice, choose two cell sizes)
8	Gluing roller /pipe change (for different cell size)	10-30 minutes
9	Heating drying method	Electric heating
10	Total Engine power	35KW
11	Power supply	Three phases, 380V/50Hz (can be speical made )
12	Layout	30000X5000X2500mm

---
