Plastic EPE Foam Extrusion Machine

Product Description

Plastic EPE Foam Machine
1.Introduction:
JC series EPE foam sheet machine has more than 20 years experience in this field, now has become the Biggest and No. 1 manufacturer in China. Besides the standard models, we do also offer customerized requirements. Till now, we share 75% China market and have exported to more than 30 different countries. We pay more attention to Quality & Service.

EPE foam sheet are widely used in the packing industry & mattress.
1> for packing usage: EPE foam sheet can be used in electronic circuit board, electricproducts, high-grade furniture, motorcycles, shoes-making,wooden floor, cases and bags, hardwares, bicycles, automobiles, pottety, glass wares etc;
2> for mattress usage: EPE foam sheet and EPE foam pipe can be used as the mettress foam core, spring cover, and outside layer.



2.Technique data:
* Resin applied: LDPE
* Capacity of extrusion: about 550-650kg/hr
* Thickness of sheet: about 15-25mm
* Width of sheet: 800-2500mm, depending on thickness of sheet
* Density of sheet: 14-120kg/m3
* Speed of production line: 10-80m/min
* Specifications of power: 3 phases × 380/400/415/440V × 50/60Hz

3. EPE Foam Machine strength:
>Low density at 11-15kg/m3, help cumstomer gain much profit and competitive local markets.
>Machines adopt ceramic heaters, aluminum heaters, stainless steel heaters.
>Machines adopt both water inside and outside cooling
>Change thickness without stop machine
>Auto-cutting system, easily operate.
4.Main Technical Specification:

Foaming rate	times	30-55	30-55	30-55	30-55
Product width	mm	1000-2000	1000-2000	1000-4000	1000-4000
Product thickness	mm	5-20	10-25	10-30	10-50
Output	kg/h	600	650	750-800	800-850
Die		Round /T die
Foaming agent		Butane gas/CO2
Installed power	KW	220	280	350	450
Dimensions	m	34x4x2.4	34x4x2.4	35×4×2.4	35×4×2.4

4. Customers around the world:

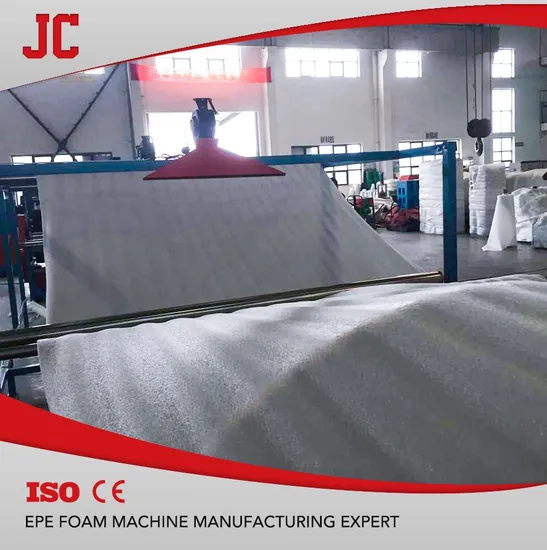

5.Workshop:

Running EPE FOAM MACHINES in our factory available EVERYDAY, welcome visit us at ANYTIME!

---
