China Factory Harvester Spare Parts Farm Machine Part Pto Shaft Cardan Drive Shaft

Product Description

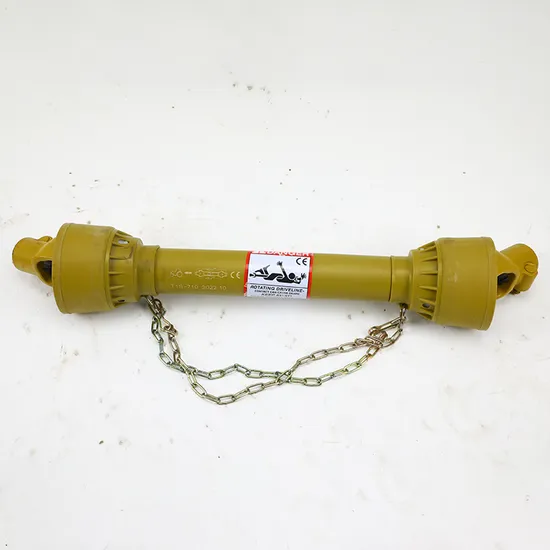

Transmission Shaft PTO Shaft for Agricultural Machine
Durable Transmission Shaft Made of aluminum alloy with excellent quality and carefully selected materials,the hot head greatly extends its service life.
Application Scope for PTO Shafts
Various types of agricultural machinery transmission shafts, with a wide range of product uses, which are mainly suitable for agricultural tractors,micro tillers,rotary tillers,seeders,fertilizer spreaders,lawn mowers,baling machines,grass bales and so on.

Series	D(mm)	W(mm)	540			1000
			CV	KW	NM	CV	KW	NM
1S	22.0	54.0	16	12	210	25	18	172
2S	23.8	61.3	21	15	270	31	23	220
3S	27.0	70.0	30	22	390	47	35	330
4S	27.0	74.6	35	26	460	55	40	380
5S	30.2	80.0	47	35	620	74	54	520
6S	30.2	92.0	64	47	830	100	74	710
7S	30.2	106.5	75	55	970	118	87	830
8S	35.0	106.5	95	70	1240	150	110	1050
9S	41.0	108.0	120	88	1560	190	140	1340

Company Profile






Shuoxin, Sure thing.
Hebei Shuoxin Machinery Manufacturing Co., Ltd has been in the agricultural machinery industry for more than 30 years, the product range covering spraying machines, fertilizer spreaders, manure spreaders, mowers, rakes, land levellers and so on. In the 30 years' service for agriculture field, Shuoxin has grown into an enterprise that integrates multiple business modules such as Design, Manufacture, Service and Information Survey. Shuoxin agricultural machinery have done a important work to nutrition supply and plant diseases & insect pests control for crops such as wheat, cotton, corn, rice, orchards and vegetables. With the ISO System certificates and CE production certificates, Cooperating with Shuixin can guarantee the partners with advanced machine products, reduced labor cost, improved work efficiency and promoted product revenue.
Certifications
Product packaging

Iron Farme Packing
All the machines are fixed in the Iron Frame by steel wire, the Frame use the steel which is thicker than 3mm. Strong enough to carry and protect the machine.
Black plastic film will also protect the machine from rain and sun shine.

All the frames is welded according to the machine size, to make sure the minimum size and weight.

---
