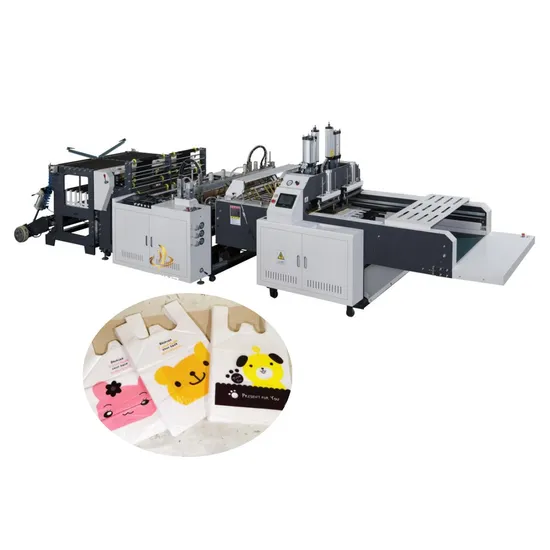

400*2 500*2automatic High Speed Two Lines Biodegradable Plastic T-Shirt Shopping Polythene Vest Bag Making Machine

Product Description

Product Parameters
Technical Specification :
Model : 450×2
Max Bag length : 270-650mm×2
Max Bag width : 180-450mm×2
Making speed : 100-280pcs/min×2
Making thickness: 0.01-0.05mm
Power: 16kw
Machine weight: 2400kg
Machine size: 6000×1750×1800mm
Air pressure: 10HP

Main Configurations Of Machine
Name	Origin/Brand
Mainframe of machine	Thick steel plate
Material feeding system	Modulating control system
Heating way of cutting knife	Electric heating
Mainframe of punching machine	Thick steel plate
Unwinding way	Dancing roll
Loading way	Pneumatic cylinder
Unwinding brake	Pneumatic brake/Magnetic powder brake
Main motor	Dedong, Shanghai/2.2KW
Unwinding motor	Dedong, Shanghai/0.55KW
Servo motor	Huichuan, China/3.6KW
Computer controller	Xuncheng/Wuxi city
Hall switch	SDD, Shanghai
Computer of punching machine	Touch screen
Main motor of punching machine	Driving controller
Bearing	NSK/Japan or Renben/China

Detailed Photos
Packaging & Shipping
Certifications
Client

FAQ
Q:Can you design the machine according to our requirements?
A:Yes. We not only can customize the machine according to your technical drawing, but also can make new machine according to your requirements.

Q:Can you offer overseas technical support?
A:Yes. We can send engineer to your company to set the machine and train your
worker if needed.

Q:Why our customers trust and choose us?
A:1.manufacturer
2.we have stocks
3.delivery fast
4.senior engineer
5.competitive price
6.high quality
7.strict quality control
8.over 10 years experience
9.provide test
10.varity of goods
11.excellent after-sales services
12.advanced machinery and equipment

---
