Customized Steel Billet Lifting Tong Mechanical Steel Plate Slab Lifter Slab Clamp

Product Description

Product Display

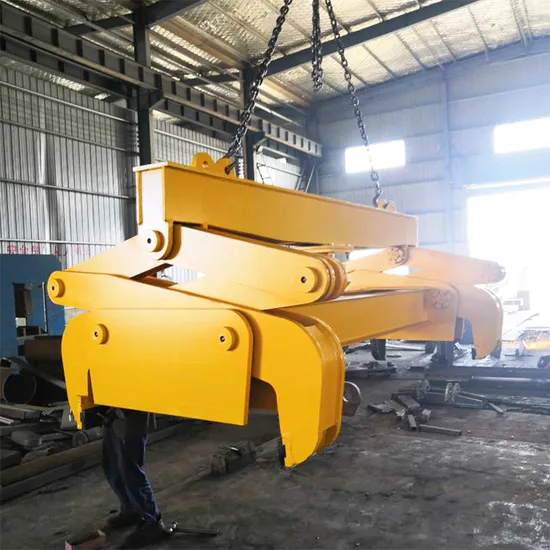

Steel Lifting Clamp
The steel billet lifting fixture uses the lever principle to lift the steel billet, without the need for a power source. It is positioned and locked by a rotating automatic locking device or mechanical automatic locking device. It can lift single-layer and multi-layer steel billets and has the characteristic of flexible operation. The billet clamp mainly consists of seven parts: a lifting beam, a connecting rod, an automatic locking device, a synchronizer, a clamp arm, a support plate, and a clamp tooth.

Types	C-type/Rotating electric and customized
Material	Steel plank.
Combination	Reducer,Rotary motor,Torque limiter,Cable,Low-voltage electrical fittings,Terminal,The aviation plug,etc.
Size	Customized
Color	Yellow/Customized
Drawing Service	Yes
Capacity	5T-40T

Product Overview
We still have other types Steel Lifting Clamp for you to choose, if you want to know more details please contact us!
Main Feature
1.Billet( plate) lifter is used for lifting steel billet, aluminum plate &copperplate. 2.Clamp force is produced by lever mechanism through gravity of slab. 3.The opening and close of clamp is controlled by auto latch mechanism. 4.Single or multiple slabs can be lifted. 5.Single in structure, convenient and agile in usage. 6.The wide range of available square billet is 100mm-400mm. 7.1 - 60t billet handing capacity depending on the size of the lifter. 8.Support customized steel plate lifting clamp.
