Cookie Production Line Snack Making Machine High Quality

Product Description

Product Description

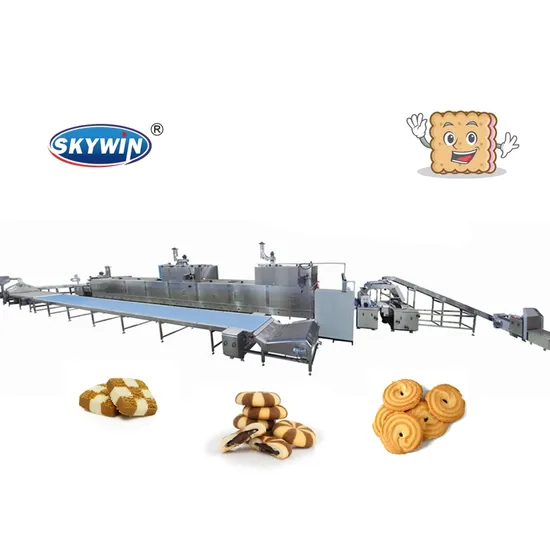

High Efficiency Cookie Production Line
Wire-Cut Cookie & Deposit Cookie
Mixing
Horizontal Dough Mixer Capacity:150KG/300KG/400KG/600KG/750KG
↓
Forming
Wire-Cut Cookie/Deposit Cookie
Model:400mm/600mm/800mm/1000mm/1200mm
↓
Baking
Gas/Electricity/Diesel Oil Tunnel oven for option
↓
Cooling
Cooling Conveyor
↓
Packing
Stacker&Flow Packing/On-Edge Packing
New Product: Three Colors Cookie Encrusting Machine
Specification:
1.304 Stainless steel Cover, thickness 1.5-2.0mm
2.Feeding roller diameter 160mm, with groove
3.Oven belt width 1000mm-1100mm
4.Dynamic structure, total 2 servo motor control. Feeding roller motor 2kw, wire cut forming 2kw
5.Deposit forming by 5 servo motor controlled
6.Provided two sets of cookies moulds as per pictures
7.Dimension: 1700 x 1300 x 1600mm (L x W x H)
8.Capacity: Wire cut 600-700kg per hour
9.Speed: Cut 90-110times/min, Deposit 50-60times/min
10.Siemens electric parts and PLC touch screen control
11.Delta servo motor & gearbox
Detailed Photos

Product Parameters

Item	Value
Output product name	cookies
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Gear
Raw material	Corn, Wheat, Flour, Water
Machinery Function	Making Wire-cut and Deposit Cookies
Key Selling Points	Easy to Operate
Plates Covered Hard Chrome	Thickness 18mm

Certifications
Packaging & Shipping
Our regular packaging is multilayer packing, safe transport, shipping by sea:
Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).Step 2: The plastic cushion packing machine (prevent bump).Step 3: Plastic film packaging (to prevent ventilation).Step 4: Wooden case / frame packaging (easy to transport).Step 5: Tie the bandage outside of the wooden case (reinforcement overall).

Company Profile
FAQ
Q1:Are you manufacturer/Factory?
A1:Yes,we are 15 years factory.

Q2: How long time to delivery?
A2: After received payment 30-50 working days.

Q3: How is the payment?
A3: We accept 40% T/T deposit before production and 60% T/T balance before shipment and Western Union or L/C.

Q4:What can you buy from us?
A4:Biscuit Production Line,Cookies Production Line,Biscuit Sandwich Machine,Wafer Biscuit Production Line,Biscuit Packing Line.

Q5: How to get price or video?
A5: Leave message to us.Send Inquiry ↓ ↓ ↓

---
