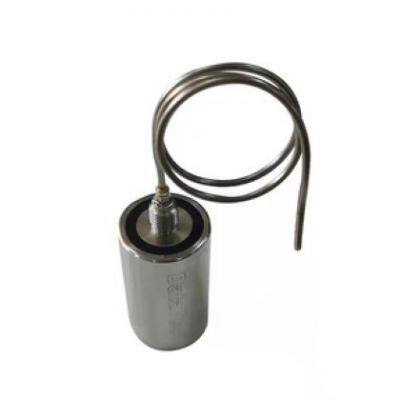

Soft Wireless Temperature Verification Probe

Product Details

Product Description

Product Description
Soft wireless temperature verification probe is mainly used to verify the internal temperature change process and verification of very short time process, such as canned and soft packaged drugs and food, as well as freeze-drying process test plate layer or product internal temperature verification, the verification process does not need to pull the wire, directly wireless temperature verification probe (temperature range: -90--150 ℃) placed in the test environment can be, the verification data will be completely recorded inside, even if the battery is exhausted will not lose the recorded data, to ensure data integrity, the supporting verification software in accordance with FDA21CFR part part, to ensure data integrity. The wireless temperature verification probe (temperature range: -90-150 ℃) can be placed directly in the environment under test, the verification data will be completely recorded in the wireless temperature verification probe, even if the battery is depleted will not be lost recorded data to ensure data integrity, supporting the verification software in line with the relevant requirements of the FDA21CFR part11, can not be compiled, tracking and auditing can be traced.
Ⅰ. Product advantages of soft wireless temperature verification probe:
A, using stainless steel 316L and PEEK material structure, completely waterproof, corrosion-resistant, high temperature
and high pressure resistant.
B, the use of high-precision PT100 temperature sensors and high-precision humidity and pressure sensors, respectively,
the accuracy of: ± 0.1 ℃ / ± 1.5% RH / ± 0.25% full scale, to meet the verification and detection of various fields, the
measurement of various parameters of a wide range.
C, wireless small size design, diameter 26mm, no wiring, adapt to a variety of environments and equipment verification
D, with a single-hole reader and eight-hole reader, USB connection communication, convenient and fast reading settings.
E, wireless verification probe with more than 32000 memory capacity.
F, a variety of probes to choose from, hard probe / soft probe / no probe optional
G, the user to replace the battery, battery life of 2-3 years, depending on the circumstances.
H. The software supports multi-system, automatic statistics related data, automatic calculation of F-value, automatic export
of all kinds of verification reports. Comply with FDA 21 CFRPart 11 and GMP requirements, tracking audit function, with CE
certificate, software copyright certificate.
Ⅱ.The probe selection parameter table
Name Short probe Long probe Soft probe
Model DT-300PRO DT-300C DT-300R
Measuring range -90℃~150℃ -90℃~150℃ -90℃~150℃
Resolution 0.01°C 0.01°C 0.01°C
Temperature Accuracy ±0.1℃ ±0.1℃ ±0.1℃
Recording capacity ≥32000 ≥32000 ≥32000
Sampling interval 1sec~24hrs 1sec~24hrs 1sec~24hrs
Material 316L and PEEK 316L and PEEK 316L and PEEK
Body size 26mm×45mm 26mm×45mm 26mm×45mm
Thread size 8mm×10mm 8mm×10mm 8mm×10mm
Probe size 4mm×40mm 4mm×90mm 2mm×490mm
Weight ≈95g ≈98g ≈100g
Waterproof rating IP68 IP68 IP68
Replaceable Battery 3.6V Li-Ion Battery 3.6V Li-Ion Battery 3.6V Li-Ion Battery

---
