Full Automatic Toilet Tissue Paper Making Machine

Product Description

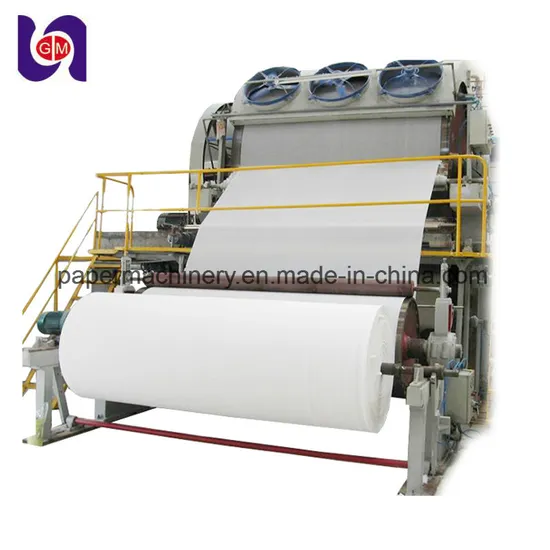

1880 High Speed Jumbo Roll Toilet Tissue Paper Making Machine
Paper machine series:Tissue paper machine, toilet paper machine, napkin paper machine I.Brief Introduction : This production line can recycle waste paper to make toilet paper, finished product is paper roll, it include following section: 1.Pulp making production line; 2.Paper making production line; 3.Paper converting section; 4.Boiler section ; 5.Hot steam recycling system ; II.Technical parameter: Raw material:Waste paper. Output paper:High & medium grade of tissue paper Paper grammes:14-28 gsm. Finished paper width:1880mm Wire width:2350mm Rail gauge:2800mm Capacity:5 Ton/Day (24 hours working) Working speed:65-130 m/min Designed speed:140m/min
III.Pulp making line 1.5m3 high consistency hydrapulper (1)qty:1 set;(2)power:37 kw,,include electric motor; 2.Pulp pump (1)qty :1set ;(2)Power:5.5kw,,include electric motor; 3.Hydrascreen (1)qty:1 set; 4.35m3 bleacher (1)qty:4 sets;(2)power:4kw, include electric motor; 5.Thruster (1)qty:2sets;(2)power:5.5kw,,include electric motor;. 6.Pulp pump (1)qty :1set ;(2)Power:5.5kw,,include electric motor; 7.Φ380mm double disc pulp refiner (1)qty:2 sets;(2)power:37kw,,include electric motor; 8.Thruster (1)qty:1set;(2)power:5.5kw,,include electric motor;. 9.Pulp pump (1)qty :1set ;(2)Power:3kw,,include electric motor; 10.Pulp pump (1)qty:1 set;(2)power:22kw,,include electric motor; 11.606sand remover 12.High frequency vibrating screen (1)qty :1 set ;(2)Power:3kw,,include electric motor; 13.Riffler (1)Qty:1set

NO.	item	quantity(set)
1	1880mm tissue paper making machine	1
2	double layer Exhausted hood of dryer can	1
3	Φ700mm axial-flow ventilator	1
4	Model-33 Roots vacuum pump	1
5	1880mm winding machine	1
6	1880mm rewinding &perforating machine	1
7	1880mm paper cutting machine	1
8	Suction box	1
9	3m3high consistency hydrapulper	1
10	0.9m2High frequency vibration screen	1
11	Φ380mm double disc pulp refiner	1
12	35m3bleacher	2
13	Φ700mmThruster	4
14	606sand remover 3 pcs	1group
15	4 inch pulp pump	4
16	1ton boiler(burn coal)	1

A.If you want to know more informations,please contact:
1.Contact person Mr Jorsen:

B.Welcome to visit our company,when you come,you can:
1.Check our manufacturing ability;
2.Check our faclities:
3.Check our running paper production line;
4.Discuss with our chief engineer;
Our company is in ZHENGZHOU city, HENAN province,China, and there is a international Zhengzhou Xinzheng airport here, so you can come directly by plane, hope we can have a good business relationship between us, welcome to your coming!We will design according to your special requirement and recommend the proper machine for you.

---
