High Temperature Heat Conductivity Coefficient Tester

Product Description

Product Description

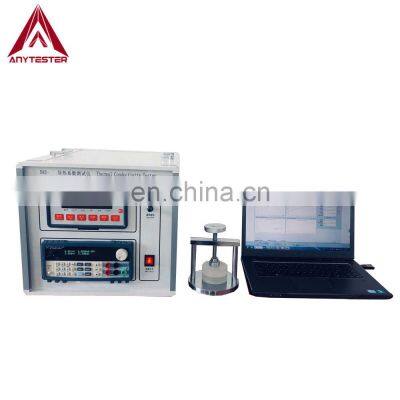

Product DescriptionDRE-III High Temperature Heat Conductivity Coefficient Tester is used to determine the heat conductivity coefficient, temperature conductivity coefficient(Thermal diffusivity) and specific heat capacity of solid or powder materials. With high-precsion, high-resolution and excellent repeatability, it is widely used in research universities, quality inspection departments and other departments. This tester adopts the transient plane heat source method, based on the TPS transient plane heat source technology, and uses a Hot Disk probe.StandardISO 22007-1, 2GB/T32064SpecificationModelDRE-IIIThermal conductivity measuring range0.001～500 w/(m.k)Thermal diffusivity measuring range0.1～100 m2/sHeat storage coefficient range0.1～30 w/(m2.k)Specific heat capacity range0.1～5 kJ/(kg.℃)Thermal resistance range0.5～0.000005 mm2.k/wSample test ambient temperature rangeRT(-40~150℃ can be customized)Temperature accuracy≤0.001℃Measurement relative error≤3%Repeatability error≤ 3%Test time1～120 secondsProbe configurationdiameter Φ15mm(standard configuration)Power supplyAC220V 50Hz, single-phase 500wSpecification of Hot Disk probeHeating materialMetal nickelOperating temperature-50～150℃Maximum power20wMaximum voltage20VMaximum current1AProtective layer materialPolyimide film(Kapton)Nickel wire specificationthickness 0.01mmDetails & FeaturesOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions420×260×630mmWeight60kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us

---
