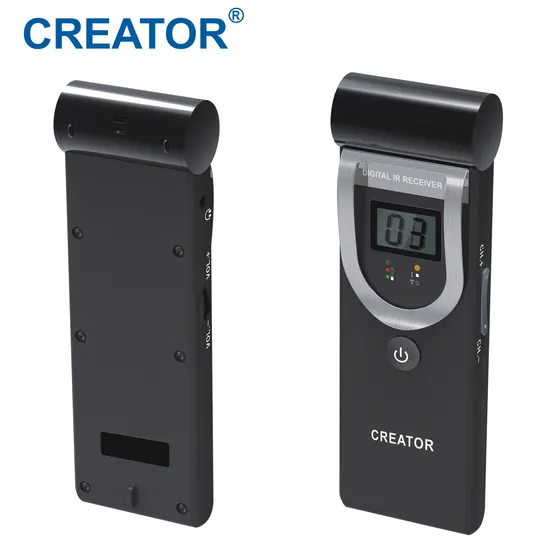

Creator Wireless Receiver Digital IR 16 Channels Simultaneous Interpretation System

Product Description

Product Overview
CR-IR3002A-16 uses the latest electronic technology and special chip, guarantee the best performance and the longest battery life. Ergonomic design infrared receiver can receive the infrared signal well. With channel selection function and volume adjustment function.
Features
♦ In accordance with IEC 61603-7 and IEC 60914.
♦ Be compatible with the use of With the IEC 61603-7 protocols.
♦ Full digital DQPSK demodulation technology.
♦ The high frequency (2-6MHz, IEC61603 BAND IV), is not affected by the high frequency driving light interference.
♦ Button type channel selection, can receive 8/16 audio channels.
♦ Status indication of channel number of large screen LCD display, battery power and signal.
♦ Be free to adjust the volume size.
♦ No noise. When the signal is too low, the signal is automatically mute, ensure that users receive only high quality signal.
♦ Appearance design is exquisite, wear-resistant, the receiver can be hung on the chest, also can be placed in the pocket of a jacket, flexible and convenient use.
♦ Without the seat limit, representatives can arbitrarily walk in the signal transmission range.
♦ In the effective range of the infrared radiation, increasing the number of receiving unit is not restricted.
♦ If the receiver can not receive the signal for 5 minutes, the earphones shuts off automatically after being plugged.

Specifications

Model No.	CR-IR3002A
Power Supply	Built-in rechargeable lithium battery 3.7V/750mA
Receiving Frequency	2M-6MHz
Total Harmonic Distortion	<1%
Frequency Response	20Hz-10KHz (standard),20Hz-10KHz (hifi audio)
Maximum Signal-to-noise Ratio	>80dB
Maximum Power Dissipation	80mw
Weight (with battery)	250g
Weight (without battery)	225g

Panel Drawing
System Diagram

Case Study
Gambia International Convention Center
Application Products: 1,500 sets of infrared simultaneous interpretation language distribution system, over 200 sets of full digital conference system, 19 sets of visual interaction system, 5 units of large-scale hybrid matrix switcher with video wall processing.
United Nations Conference on Trade and Development
Application products: 1200 sets of full digital conference system, matrix switcher, multimedia controller and other devices.
Brazil Federation of Industries of Sao Paolo (FIESP)
Application products: over 500 sets of CREATOR full digital discussion conference system, auto camera tracking system, and seamless swtiching matrix switcher.
