Hiigh Precision Milling Machine 4-Axis Machining Center 7000mm for Window Door

Product Description

Key attributes
Equipment attributes

Equipment name	4 Axis CNC Machining Center
Model	WSJ4-CNC-7000

Technical Parameter

Power supply	380V/50Hz
Spindle Power	12KW
spindle Speed	24000r/min
X-axis stroke	7000mm
Y-Axis stroke	1500mm
Z-Axis stroke	600mm
Dimensions	8800*2500*2800mm
Warranty	1 year

Lead time

Quantity(sets)	1-1	>1
Lead time(days)	15	To be negotiated

Customization

Customized logo	Min. order: 1 set
Customized packaging Graphic customization	Min. order: 1 set Min. order: 1 set
For more customization details,message supplier

Certifications
Feature
The machine can realize the clamping of raw materials at one time, and according to the processing needs, it can complete the cutting, milling end face tenon, milling key hole slot, running trough, air pressure balance hole, installation hole and other multi-process processing to meet customers' requirements for doors, windows, curtain walls, and sun rooms. , Personalized customization of industrial aluminum profiles.For a variety of aluminum, copper, PVC, industrial profiles and other complex parts processing. The machine is equipped with an industrial numerical control system, dedicated CAD-CAM editing software for three-dimensional modeling display, automatic tool setting, which can optimize the travel path. It can complete continuous automatic milling of different specifications and sizes of profiles, with powerful functions. CAD drawings can be imported into the system for convenient and simple, and can be equivalent to domestic and foreign doors, windows, and curtain wall system software. It is suitable for the processing of complex parts such as various aluminum, copper, PVC, industrial profiles, building curtain walls, and sun rooms. The single-arm frame structure with moving beam and moving column is adopted, which makes the operation more stable and improves the processing rigidity of the machine tool. High-quality bus servo motors, ball screws, linear guides and bearings are used to ensure that the equipment has high processing accuracy, high stability and reliability. The feed movement is pre-stretched to ensure the stability of the machining accuracy. Fixture automatic optimization function, automatic avoidance or early warning processing when the clamping position interferes with the processing position. The left and right partitioned layout, with two positioning plates on the left and right, can complete interactive feeding without stopping the machine and improve processing efficiency. This machine adopts high-speed electric spindle imported from Italy, which can complete the processing of any angle on the other three sides except the bottom. Vertical disc type tool magazine (12 positions). The centralized automatic feed lubrication method with quantitative timing ensures the stability of the machine tool accuracy and automatic micro automization cooling. The pneumatic clamping workbench is adopted to increase the loading and unloading speed. The fuselage adopts grating safety protection function to ensure safe operation.

Specification

High-quality 4 axis milling head
Capable of simultaneously processing the remaining three sides excluding the bottom surface, and equipped with a vertical disc tool magazine, achieve continuous automatic milling of profiles with different specifications and sizes
Vertical disc tool magazine
Rapid blade replacement enhances production efficiency.
Smooth feeding system
Adopting a dynamic beam and column single-arm frame structure for smoother operation, enhancing the machining rigidity of the machine tool.
WEIKE CNC High Speed 4-axis Machining Center can according to processing needs, independently complete multiple processes such as milling lock holes, slots, drainage channels, air pressure balance holes, and installation holes. The entire process requires only one operator, meeting customers' personalized customization requirements for doors and windows. Suitable for processing various complex parts, including aluminum, copper, PVC, industrial profiles, architectural curtain walls, sunrooms, etc.

* It can achieve continuous automatic milling of profiles with different specifications and sizes. CAD drawings can be imported into the system, and it can be interfaced with German window and door façade system software such as Klaes, Chuangao, Doot, New Gell, etc.
* Adopting a dynamic beam and column single-arm frame structure for smoother operation, enhancing the machining rigidity of the machine tool.
* Equipped with a high-quality four-axis milling head, capable of simultaneously processing the remaining three sides excluding the bottom surface, and equipped with a vertical disc tool magazine.

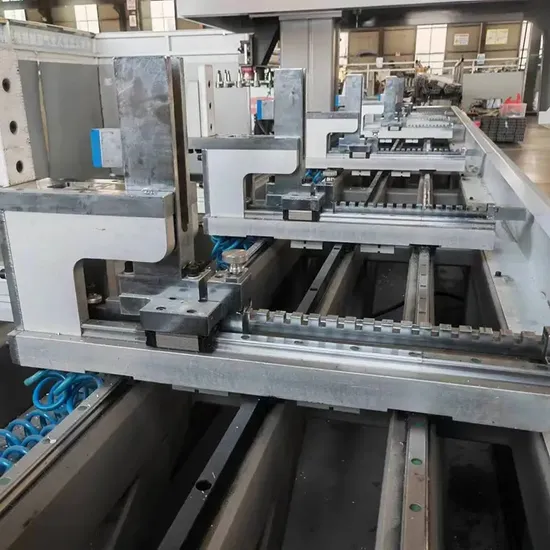

* Utilizing a pneumatic clamping worktable to enhance loading and unloading speed. Optional
T-shaped worktable available.
* The machine body is equipped with a grating safety protection function to ensure the safety of the operator.
After Working Samples

Factory Introduction

Shandong Weike CNC Machinery Co.,Ltd.is a well-known manufacturer specializing in the research, development, production and sales of aluminum doors, windows and curtain wall equipment in China. It's the most large-scale and industrialized production enterprise in the industry.
We have large production workshop and strong mechanical processing supporting capabilities, high-quality scientific research team and high-tech production team. We have strong research and development strength, perfect product system, and insists on independent innovation, improve products scientific and practical continuously. The company has several offices in China, forming a one-stop comprehensive service system integrating product development, production, sales and service.

Packing & Delivery

Packaging Details

1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port

FAQ

Q:How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q:How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q:What customized services you provided?
A: WEIKE CNC is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.

---
