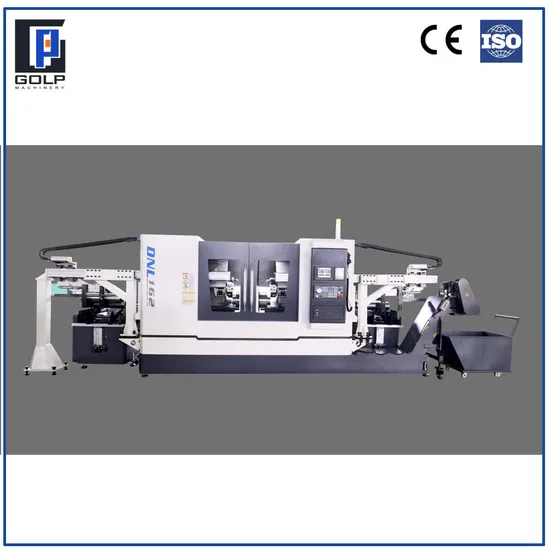

Double Head Two Spindle Turret Shaft CNC Lathe Turning Center Milling Machine for Pump Housing

Product Description

Full-function lathe, double head lathe and double spindle lathe devel-oped to better suit the production line due to the need to provide com-prehensive solutions.
An ideal choice for large-scale production and high-precision requirements, helping enterprises gain a leading position in the fierce market competition.
Automatic loading and unloading storage system
Δ Oblique integral frame body, rigidity, easy chip;
Δ Respond to dififferent parts, only replace the collet and fixtures;
Δ Fix one time,processing both end at one time, high efficiency ,good precision;
Δ Special structure single or double central spindle can respond to high speed and cutting rigid;
Δ Double spindle distance can be adjusted according to workpiece length;
Δ Independent turret on left and right;
Δ Dual-channel controller, easily respond to synchronization processing;
Δ Can carry with truss or joint robot and automatical line.
Machining workpiece automatic line

Item	DNL162	DNL223
max body rotate diameter	Ф400 mm	Ф400 mm
clamping diameter scope	Ф100-Ф160 mm	Ф160-Ф220 mm
turning length scope	200-400 mm	400-600
spindle clamp diameter	Ф160 mm	Ф220 mm
X/Z travel	180/200 mm	220/200 mm
X/Z fast speed	18/24 m/min	18/24 m/min
fool type	turret	turret
number of central spindles	one or two	one or two

Other Automation for integrated solutions
1. Single automation For long shaft / core
click above for details.

2. Double-head cnc lathe with Automation line
Automatic & connect line
3D animated simulations.
Tool Inspection System: Customized to Boost Machine Utilization, An Essential Choice
Example
WUXI GOLP CNC MACHINERY CO,.LTD is located in WUXI the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in CNC grinding machine,Die-casting machine, gear shaping machine, gear grinding machine ,gear chamfering machine ,gear measuring centering machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q: How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.

---
