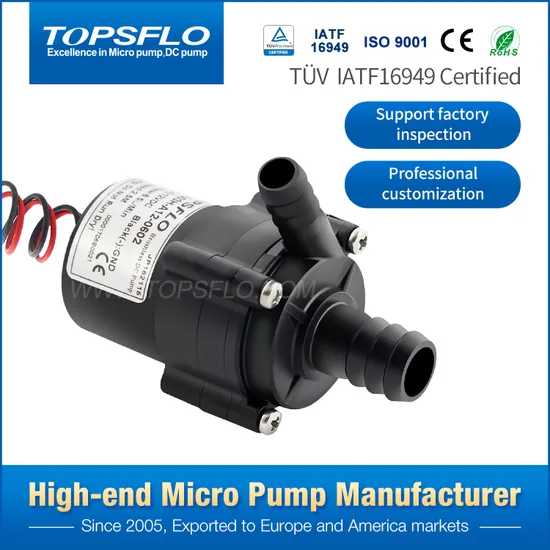

High Quality Long Lifetime Quiet Tl-B03 Electric Food Grade Hot Water Small 12V 24V Mini Brushless DC Water Pump

Product Description

Company Profile

HUGE PRODUCTION CAPACITY	R&D,OBM,ODM	SUPER QUALITY
Self-built factory 16,000square meter ESD antistatic control digital workshop, automatic electronic production lines,annual production capacity of more than 3 million pcs	CNAS standard national laboratory, over 20 years of industry experience R&D engineers, more than 50 national patents.	More than 80% of our products are exported to America and Europe; CQC quality certification,REACH, RoHS,EU CE certifications.

Application:
Water Dispenser/Water Coolers , Coffee Maker/Coffee Machine , Beverage Dispenser/Juice Machine
Water Purifier, Tea Maker, Milk Dspenser , Fountain, Hydroponics
Instant filtered drinking system
Features:
Advanced magnetic driving technology, static-seal without any leakage forever
High efficiency ECM brushless DC motor with long lifetime
Heavy duty work,can sustain 24 hours continuous running
Special designed high efficiency closed-impeller
Wide voltage range suitable for battery power supply
All wetted materials FDA certified (food safe)
Small size, light weight
Max temperature 105ºC
Durable permanent magnetic rotor and high density ceramic shaft
Specification:

Model:TL-B03
Model	Product Code		Max Water Flow (L/Min)	Rated Voltage(DC)	Rated Current (A)	Max Water Head(M)	Rated Power(W)
B03	TL-B03-A12-0602		6.5	12	0.43	2.5	5.16
	TL-B03-A24-0602		6	24	0.22	2	5.28
	TL-B03-A12-0501		4.8	12	0.2	1.2	2.4

Application Conditions
1	Environment temperature						-40~40ºC
	The use of water temperature						-40~105ºC
2	Operation Surroundings						70%RH and 100%RH
3	Working liquid						Pure Water,antifreeze,etc
4	IP Level						IP68
5	Max pressure / Continue work Pressure						1.8Mpa / 0.5Mpa

Get more Technical data, please contact us !
Usage Note:
Dry-running is prohibited.
Reverse polarity is not allowed (except customized).
The pump if dropped or with heavy vibration do not use.
Liquid contain impurities or magnetic particles are not allowed.
Liquid temperature over 80°C is not allowed (except high temperature models).
Acidic or alkaline liquid is prohibited (except customized).

Company Profile

TOPSFLO is a professional DC brushless water pumps and DC diaphragm pumps manufacturer, Main export to the high-end markets in Europe and America, also the national high-tech enterprise. It has selfbuilt factory 16,000m2, own SMT and plastic injection factory,ESD anti-static control digital workshop, automatic electronic production lines,motor production lines and pump assembly lines,with annual production capacity of more than 3million pieces. TOPSFLO is the only enterprise in China certified by German Rheinland TÜV double quality system of ISO 9001and IATF:16949 in the micro pump industry.Owning the most professional and precise 4 laboratories that meeting the CNAS national laboratory certification standard. and a team of R&D engineers with over 20 years of industry experience, which can provide customers with efficient and professional solutions or new customized development solutions.. TOPSFLO is well-known for its high quality and good batch consistency, has established a solid and good cooperative relationship with many world famous brands, such as Tesla, Flextronics, Kohler, GE, Roca, KTM, DeRUCCI etc. Get more detail,please contact us

---
