【 Product Introduction 】

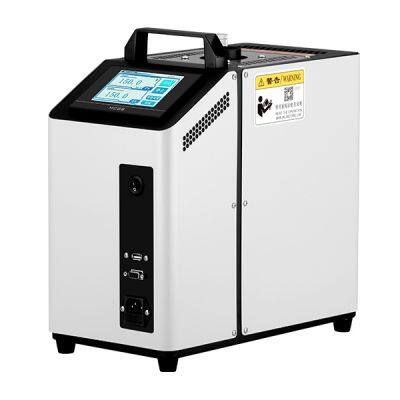

The transformer thermometer field detection device can provide a uniform and accurate temperature environment (temperature field), providing similar performance to the constant temperature tank (liquid bath), but the transformer thermometer field detection device is convenient to carry and does not require liquid placement. The on-site detection device of the transformer thermometer reaches the predetermined temperature point and the temperature stability time is 5 to 10 times faster than that of the constant temperature tank, which can greatly save the time of the calibration personnel and improve the temperature verification speed. The portability of the transformer thermometer field detection device makes it convenient to carry out calibration work on site.
【 Product Features 】
1, humanized design, 4.3 inch touch screen operation, convenient and fast
2, advanced modular structure, easy maintenance;
3, the test port with standard thread, compact fixed;
4, heating and cooling direct operation, heating and cooling rapidly;
【 Technical index 】
Model number
DY-GTLB
Temperature range
-20 ℃~150 ℃
Display resolution
0.01 ℃
stability
Plus or minus 0.1 ℃
accuracy
Plus or minus 0.5 ℃
Control mode
Touch screen
Check hole depth
150mm
Soaking hole diameter
15mm
Power source
220V AC 50/60Hz
power
≤500W
Rate of warming
≥5℃ per minute
Cooling rate
≥1℃ per minute
Dimensions (L × W × H)
320mm×160mm×280mm
weight
10kg
>>
