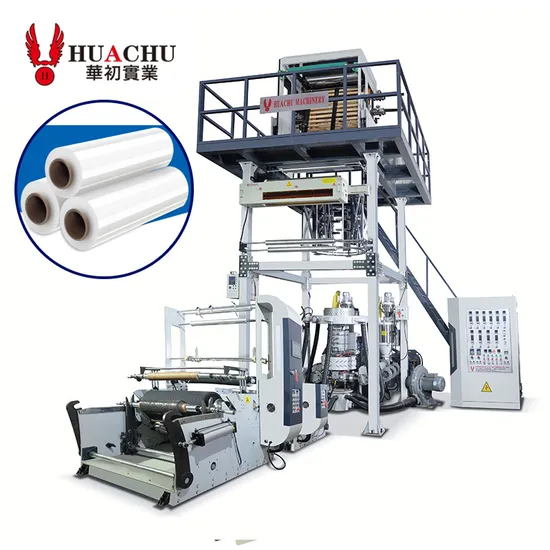

2 Screws ABA PE Film Extruder Blowing Plastic Three-Layer Extrusion Machine

Product Description

ABA Three-Layer Extruder Film Blowing Machine With Dosing system
Use:
It is used for blowing the plastic laminated film of low density polyethylene (LDPE), high density polythylene(HDPE)and linear low density polyethylene(LLDPE)etc, Which are widely used for packing liquid, printed base material, products for export and industrial products, etc.
Description
1. Three-layer co-extrusion laminated film can prolong the length for preservation of liquid package.
2. The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
3. The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4. Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll- changing easy.
Technology Parameter

MODEL	ABA50X60X1200
SUITABLE MATERIAL	HDPE.LLDPE,LDPE
LAYERNUMBER	3-ABA
FILM THICKNESS	HD: 0.01-0.06MM LD:0.03-0.1MM
MAX OUTPUT	180 KG/H
MAX FILM WIDTH	1100MM
SCREW DIAMETER	50X60
SCREW L/D RATIO	32/1
SCREW MATERIAL	BIMETALLIC
BARREL THERMO CONTROL	3X2
BARREL COOLING FAN	370WX3X2
SCREEN CHANGER	FAST SCREEN CHANGER 2 PCS
DRIVING MOTOR	18.5KW X 30 KW SIEMENS
GEARBOX	#146*180
DIE	HDPE ABA60 /80/ 100MM & LD 200MM
DIE TYPE	FIXED DIE
AIR RING	DUAL LIP
AIR BLOWER	5.5KW
BUBBLE CAGE MATERIAL	ALUMINUM
TOP NIP MATERIAL	WOODEN
TAKE UP ROLL MATERIAL	HIGH TEMP RUBBER
TAKE-UP ROLLER LENGTH	1200MM
GUSSET	INCLUDED
TAKE-UP MOTOR	2.2 KW GEAR MOTOR
TAKE-UP SPEED	10-80M/MIN
PINCH PATTERN	PNEUMATIC
WINDING TYPE	SINGLE MANUAL WINDER
WINDING ROLLER LENGTH	1200MM
WINDING SHAFT	STOPPER SHAFTX2
BANANA ROLLER	WITHIN
MAX DIA.OF WINDED ROLL	800MM
WINDING MOTOR	TORQUE MOTOR WITH INVERTER(DALTA)
SPEED CONTROL	SPEED CONTROLLER
HEATING SYSTEM	ACR+PID (ENERGY SAVING)
TEMP. CONTROLLER	OMRON
INVERTER BRAND	DELTA (TAIWAN)
ELECTRIC CONTROL SYSTEM	ABB
DOSING SYSTEM	2 SETS 1+1 HEAD
FILM WIDTH CONTROLLER	1 SET BRAND OMRON
AUTOMATIC MATERIAL LOADER WITH DRYER	INCLUDED
CONTACTOR	ABB
WORKING VOLTAGE	380V,50HZ

Details Information


Workshop
Welcome to contact us for more details and prices!!!
Wenzhou brother union imp&exp Co., Ltd is a professional manufacturer of HDPE / LDPE / LLDPE blown film machine, bag making machine ,PE recycle machine and flexo printing machine. "HUACHU MACHINERY" is our brand name , We are committed to creating high-end Chinese-made brands with better quality and stricter details. Insist on researching and development, always striving for innovation and perfection. Innovation, Quality, Service and Satisfactory are our conceptions of lasting conduct.
CONTACT:
Sales:Rahma Zhao
A. When your company was found?
B. our sales team has more than 15 years experience in the plastic machinery industry.
A. What are products do you supply?
B. We are manufacturer of Plastic/Biodegradable film blowing machine,Bag making machine,printing machine,plastic recycling machine etc.
A.How about your products warranty ?
B.One year(12 months) Warranty will be provide from the date of container arrive Clients'factory.If machine parts are broken due to quality problem within warranty period, we will send new part for free( Any artificial misuse or destory prepensely is not included within the limitation of Quality Guarantee).
A. What are your Payment and delivery terms?
B.Payment term:
1) T/T, 30% as prepaid ,70% before delivery
2) L/C, 30% by T/T ,70% as L/C at sight, and for clients from Bangladesh&Ethiopia ,we accept 100% L/C at sight.
Delivery time: Standard will be in 30-40 working days
A.What Technical Support we can get if order machines
B.We can provide Installation Drawings,Basic operating instructions,Operation explanation through Video&Photos,Online video calling for technical support if necessary.

---
