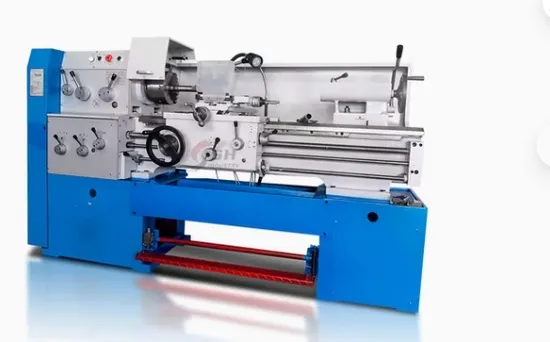

Horizontal Metal Lathe Machines C6136 Universal High Quality Lathe Machine for Sale

Product Description

Horizontal Metal Lathe Machines C6136 Universal High Quality Lathe Machine for Sale
Product Description
Features :
360mm Rail width
Thread processing need to change gears
Tool size is 20x20mm
Gears is steel of precision grinding and hardened
Standard Accessories
Hook wrench
Inner hexagon spanner
Single-ended wrench
Socket wrench
3-jaw chuck
Dead center
Center sleeve
Triangular belt
Adjustment pad iron
Foundation bolts
Change gear
SPECIFICATIONS:

SPECIFICATIONS	Units	C6136
Swing over bed	mm	360
Swing over cross slide	mm	190
Swing over gap	mm	-
Distance between centers	mm	750/1000/1500/2000/3000
Spindle bore	mm	52(Optional:80)
Spindle bore taper	-	MT6(Optional:Metric 1:20)
Spindle speed steps	-	9
Spindle speed range	rpm	40-1400
Cross slide travel	mm	180
Top tool post travel	mm	95
Tool size	mm	20 x 20
Longitudinal feeds range	mm/r	0.0832-4.6569
Cross feeds range	mm/r	0.048-2.688
Kinds of metric threads	kinds	19
Range of metric threads	mm	0.25-14
Kinds of inch threads	kinds	28
Range of inch threads	T.P.I.	2-40
Kinds of threads module	kinds	17
Range of threads module	MP	0.25-3.5
Tailstock quill diameter	mm	65
Tailstock quill taper	-	MT4
Tailstock quill travel	mm	130
Main motor power	kw	4
Coolant pump motor	kw	0.09
Weight for 750	kg	1200
Weight for 1000	kg	1300
Weight for 1500	kg	1500
Weight for 2000	kg	1700
Weight for 3000	kg	1900
Dimension for 750	mm	2200x1140x1750
Dimension for 1000	mm	2400x1140x1750
Dimension for 1500	mm	2900x1140x1750
Dimension for 2000	mm	3400x1140x1750
Dimension for 3000	mm	4400x1140x1750

Detailed Photos
Company Profile

Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
