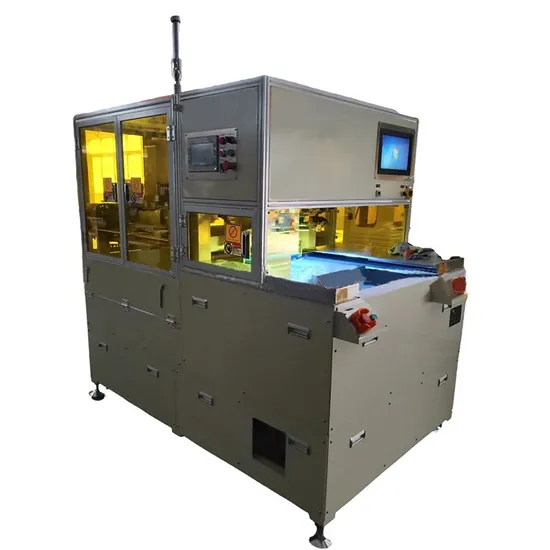

High-Precision CCD Screen Printing Machine for Electrode Blood Sugar Test Strip Carbon Paste Silver Paste Printer

Product Description

High-Precision CCD Screen Printing Machine For Electrode Blood Sugar Test Strip Carbon Paste Silver Paste Printer
Introduction:
This machine is specially designed for the printing of test paper electrodes. It is equipped with the function of automatic dust removal and static electricity removal. It adopts 2 CCD visual automatic alignment, high printing precision, fast efficiency, and good uniformity of coating thickness. It can be loaded and unloaded manually, or it can be automatically loaded and unloaded with a manipulator. Equipment operation is simple and practical.
CCD uses 3-color light source not only to be cool, but also to find marks of different colors and shapes on different materials, which is convenient for accurate alignment. To meet the high-precision printing requirements of customers, the alignment accuracy is 0.01mm, and the thickness uniformity of the printing paste is ±1um.
The appearance design is novel, the detail processing reflects the spirit of ingenuity, the function is powerful, and it is both beautiful and practical. Due to its excellent performance and high-precision printing accuracy, it is easy to operate and easy to master, and has won high trust and cooperation from many research institutes and scientific research institutions.
Machine Parameters:
Model#: ZT-2535CCD-EBL
Workbench Size: 400mm * 600mm
Printing Size: 250mm * 350mm
Screen Frame Size: 660mm * 770mm
Printing Speed: 300 m/min
Substrate Thickness Range: 0~2 mm
Number of CCD Lenses: 2
CCD Pixel: 1.3 million
Printing Registration Accuracy: ±0.01mm
Ink Layer Thickness Uniformity: ±1um
Total Equipment Power: AC380V, 5KW, 50Hz/60Hz
Equipment Weight: 1400kgs
Machine Overall Size: 2200mm * 1350mm * 1900mm
Package: Standard Export Plywood Box
Package Size: 2250*1400*2000mm / 6.3cbm / 1480kgs

---
