US$9,000.00-9,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.

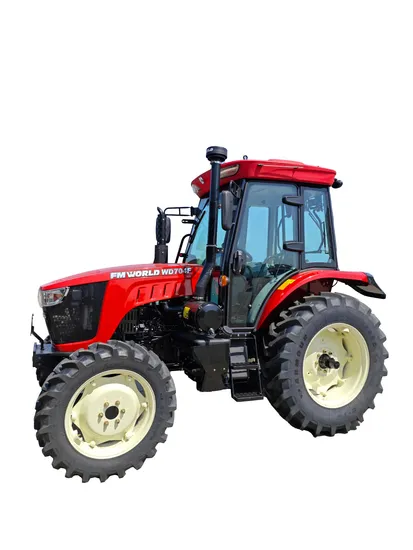

WD704F(F-Series)
Certification
ISO9001:2008
Application Field
Agriculture
Production Capacity
20000
Product Description
Feature:
-High quality engine with strong power but low fuel consumption
-Adopt transmission 12F+12R shuttle for easier operation which caters to different needs
-Axles wiht outstanding sealing performance ensure tractors working well in water or deep muddy field
-High quality bearings are used for long prolonging working life
-ROPS&Canopy are equipped as standard, while cabin and air brake are optional for comfor and road transport
| Model | WD554F | WD604F | WD704F |
| Structure | 4*4 |
| Engine | Engine Power@speed(HP) | 55@2300 | 60@2300 | 70@2300 |
| Engine Type | 4 Cylinder, Inline, Vertical, Water-cooled, diesel engine |
| Fuel Tank Capacity(L) | 60 | 115 |
| Battery | 12V |
| Air Cleaner | Dry |
| Transmission | Gears | Shuttle 12F +12R |
| Clutch | Dual Clutch |
| Brake | Mechanical disc |
| Differential Lock | Pin Type, Mechanical |
| PTO System | Direction of turning | Clockwise,viewed from tractor rear |
| Diameter of PTO Shaft(mm) | 35 |
| PTO Speeds(rpm) | 540/760 |
| Hydraulic system | Type | Category II & 3 point hitch |
| Control System | Position ,draft |
| Rear Auxiliary Remote Valves | 2 groups |
| Lifting Capacity(KG) | >=970 | >=1588 | >=1853 |
| Other Parameters | Steering | Hydraulic Power Steering |
| Dimension(mm)@canopy | 3570*1710*2660 | 3820*1850*2720 |
| Gorund Clearance(mm) | 460 |
| Tires(F/R) | 8.3-20/12.4-28 PR-1 | 9.5R24/14.9R30 R-1W, other size optional |
| Wheel Base (mm) | 1992 |
| Wheel Track(F/R)(mm) | 1300~1400/1300~1500 | 1300~1400/1300~1500 | 1300~1400/1300~1500 |
| Ballast Weight Front/Rear(kg) | 180/90 |
| Min Operation Weight(kg) | 2326(canopy) | 2500(canopy) |
>>
