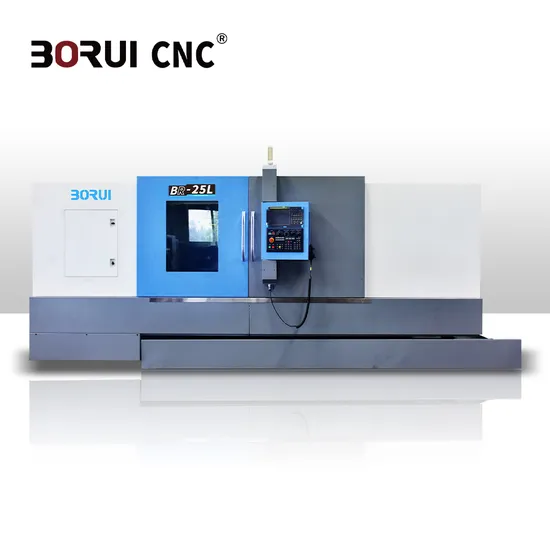

Br-25L Horizontal CNC Lathe Turning and Milling Machine Center Siemens CNC Inclined Bed

Product Description

BR-25L Cheap price cnc turning and milling machine linear guide way cnc lathe

Product Description

Features:
1. The series CNC lathe is designed with high strength, rigidity and with advanced machine structure, defense,and security.
2.The machine adopt the high rigidity cast iron, base and lathe bed monolithic structure, high precision through-hole structure, vibration resistance designed and high range spindle motor.
3.The bearings and feeding screw adopt the world famous brand, equipped with multi-position tool post, tools are easily changed and changed fast with high precision.
Application:
Slant Bed cnc Lathe machine is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of
threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace and other industries on the rotary parts for efficient, high-volume, high-precision processing.

Product Parameters

Item	BR-25L- 750	BR-25LA-750	BR-25L- 1000	BR-25LA-1000	BR-25L- 1500	BR-25LA-1500	BR-25L- 2000	BR-25LA-2000
The max.swing diameter over bed	Φ830
Max. machining diameter	Φ620
Max. swing diameter over cross slide	Φ460
Max. processing length	650mm	490mm	950mm	890mm	1550mm	1490mm	2150mm	2090mm
Spindle end type	A2-8	A2-11	A2-8	A2-11	A2-8	A2-11	A2-8	A2-11
Optional chuck(optional accessories)	10 " (12 ")	12 " (15 ")	10 " (12 ")	12 " (15 ")	10 " (12 ")	12 " (15 ")	10 " (12 ")	12 " (15 ")
Spindle motor power	22-30KW
Spindle speed	2500rpm	1800rpm	2500rpm	1800rpm	2500rpm	1800rpm	2500rpm	1800rpm
Spindle through hole diameter	Φ87	Φ102	Φ87	Φ102	Φ87	Φ102	Φ87	Φ102
Through the bar diameter	Φ75	Φ91	Φ75	Φ88	Φ75	Φ88	Φ75	Φ88
X/Z axis lead screw specification	4008/5010
X/Z axis linear guide specifications	45/45
X/Z axis limit travel	330mm/930mm		330mm/1230mm		330mm/1830mm		330mm/2430mm
X/Z axis motor torque	22 N.M/22 N.M
X,Z axis connection type	Direct connection
Turret	NC125,SH125
Tower station	10T/12T
Turret center height size	125mm
Sleeve diameter	100mm
Sleeve travel	80mm
Tailstock travel	785mm		1085mm		1685mm		2285mm
Tailstock sleeve taper	MT5
Bed type and inclination	Integrated/30°		Integrated/30°		Integrated/30°		Integrated/30°
Machine size(L * W * H)	2760/1510/1580		3360/1510/1580		3960/1510/1580		4560/1510/1580

Details Display
Packaging & Shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have.
Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
