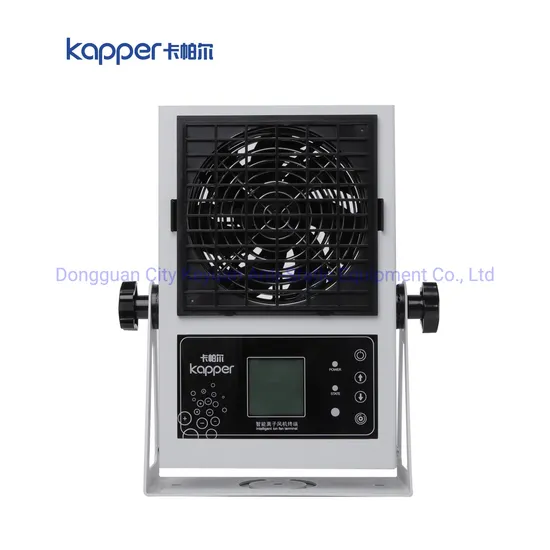

Kapper Intelligent Networking Display Screen Desktop Ionzing Air Blower

Product Description

SECTION 1:DESCRIPTION***********************************************************
KP101A-7T Generation 6 intelligent desktop ion fan is an intelligent anti-static device newly developed and produced by Kapper to eliminate static electricity on the surface of an object.
KP101A-7T Generation 6 intelligent desktop ion fan can generate a large amount of airflow with positive and negative charges, which can neutralize the charge on the object. When the surface of the object is negatively charged, it will attract the positive charge in the airflow. When the surface of the object is positively charged, it will attract the negative charge in the airflow, so that the static electricity on the surface of the object is neutralized and eliminated. The purpose of static electricity.
KP101A-7T Generation 6 intelligent desktop ion fan is provided with wind power by a small fan, and the wind power can be adjusted in the touch button or remote control.
KP101A-7T Generation 6 intelligent desktop ion fan is used in precision electronics, pharmaceutical manufacturing, plastics, optoelectronics and other industries.
SECTION 2:FEATURES***************************************************************
1.Intelligent and modern, exquisite appearance, exquisite production and novel design.
2.The firing needle brush automatic cleaning function, deeper maintenance (cleaning time / cleaning interval / positive and negative cleaning direction / boot cleaning can be set by yourself).
3.Remote control and touch dual control power to start, adjust the wind power.
4.The remote control lock screen locks the wind speed and parameter settings, and the ion fan in the workshop achieves standardization of static elimination.
5.With fan abnormal alarm, high-pressure abnormal alarm and ion balance threshold exceeding alarm function, the wind machine self-checking protection stops working.
6.Lora and Zigbee can be interchanged and networked to achieve network monitoring functions (local address, gateway address, and communication channel can all be set by themselves).
7. Digital display of ion balance.
8.The screen contrast is adjustable.
9.The infrared sensor function can be added according to the needs.
10.Fast static elimination speed, low balance voltage and high safety performance.
11.Energy saving and environmental protection, low power consumption.
SECTION 3:SPECIFICATIONS********************************************************

Control panel	LED digital display	Wind speed gear
	Automatic cleaning button	It can be automatically cleaned every 8 hours (time can be customized for large quantity)
	Fault alarm	Wind sound/red indicator flash
	ouch button speed control	Remote control/touch control
	Wind speed gear	Remote control/touch control
	Power start	Remote control/touch control
	Lock screen widget	Remote control
Power	Power intelligent frequency conversion AC 220V / DC control system	Intelligent control system/fan DC12V
	The socket is connected to the back	/
Appearance	Fan angle control screw hole is reserved on the side	/
	Material	Cold rolled plate
	Surface	Electrostatic spray paint
	Front plastic windshield	It can be disassembled freely.
	Rear plastic windshield	Filter network is optional
	Casing grounded	No electricity leakage
	Include the size of bracket	186mm(L)*100mm(W)*240mm(H)
	Not include the size of bracket	146mm(L)*88mm(W)*222mm(H)
Static electricity facilities	Automatic cleaning of discharge needle	/
	Discharge needle material	Tungsten alloy, non-detachable
	Power consumption time	≤2S(300mm from the product)
	Ion balance	≤|±10V|(300mm from the product)
	Connection mode	Frequency conversion AC 5 .0KV
	The effective control diameter for static electricity elimination is 300mm	300mm from the product
	Cleaning brush	Antistatic material, no abrasion or picking
Blower	Fan air volume ≤5.1m3/min	300mm from the product
	Power	8W
	Working distance	100-600mm
	Working temperature	0-50ºC
	Working humidity	56%-65%
	Air velocity	45-110CFM
	Noise	45-55dB
	Net weight	About 2.5kg
	Gross weight	About 3.1kg
Other	One year of warranty

SECTION 4:TEST RESULT**********************************************************

Testing condition
Humidity:≤60% Testing voltage:1KV-100V Temperature:22ºC
Distance		300mm	600mm
Decay time	Positive	0.5s	0.8s
	Negative	0.5s	0.7s
Offset voltage	Positive	+6V	+8V
	Negative	-8V	-7V

* The test result by ME268A comprehensive electrostatic tester shall prevail.
* Test according to IEC - 61340-5-1 A 6.
* Test data may change with the surrounding temperature and humidity.
