Square HVAC Duct Galvanized Metal Sheet Shearing Machine

Product Description

Product description:

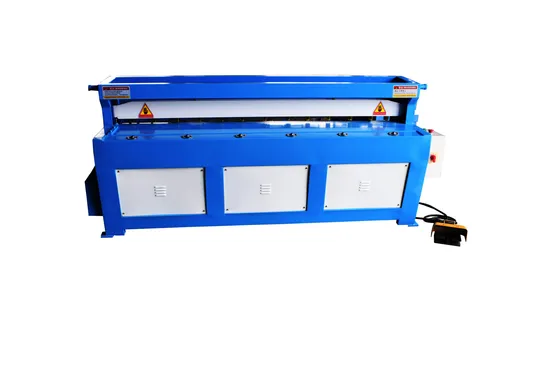

Q11 electric shearing machine has simple structure, easy operation, elegant design,attractive appearance and low energy consumption. Mechanical shears Uses resist key structural form and open gear clutch transmission, and more advanced Electric operation (foot switch, manual switch) with low noise operation and easy maintenance.It is widely used in metallurgy, light industry, machinery, hardware, electrical, electronics, automotive repair, metal fabrication and other sheet metal processing.the machine is made of all-steel welded construction.Uses electric motor drive, blade made by material 6CrW2Si.Widely used in motor, electrical, automobile industries and all shops of other industries where sheet metal cutting is required.
Simple construction,easily operation and safe, sensitive and reliable control, easy maintenance, low energy consumption.
Technical parameter:

Model (Q11)	Max thickness (mm)	Max width (mm)	Cutting angle(°)	Stroke (t/min)	Backage range (mm)	Power (kw)	Dimension (L*W*H )(mm)
Q11-1.5x600	1.5	600	1°30′	60	300	1.5	1200*950*1100
Q11-1.5x1000	1.5	1000	1°30′	60	300	1.5	1600*950*1100
Q11-1.5x1300	1.5	1300	1°30′	55	300	1.5	1900*950*1100
Q11-1.5x2500	1.5	2500	1°30′	50	300	4.5	3300*1100*1100
Q11-1.5x3000	1.5	3000	1°30′	40	300	5.5	3600*1100*1200
Q11-2x1000	2	1000	2°14′	55	350	3	1600*1000*1100
Q11-2x1300	2	1300	2°14′	50	350	3	1900*1000*1100
Q11-2x2500	2	2500	2°14′	45	350	4.5	3300*1100*1200
Q11-3x1000	3	1000	2°14′	50	400	4.5	1600*1100*1200
Q11-3x1200	3	1200	2°14′	55	400	4.5	1700*1100*1200
Q11-3x1300	3	1300	2°14′	55	400	4.5	1900*1100*1200
Q11-3x1500	3	1500	2°14′	55	400	4.5	2200*1100*1200
Q11-3*2000	3	2000	2°14′	50	400	5.5	2900*1870*1150
Q11-3*2500	3	2500	2°14′	45	400	5.5	3300*1900*1200
Q11-4*1300	4	1300	1°30′	55	500	5.5	2080*1505*1245
Q11-4*1500	4	1600	1°30′	55	500	5.5	2280*1505*1245
Q11-4*2000	4	2000	1°30′	50	500	7	3000*1970*1250
Q11-4*2500	4	2500	1°30′	50	500	7	3500*1970*1250

Product overviews
Packing & Delivery

---
