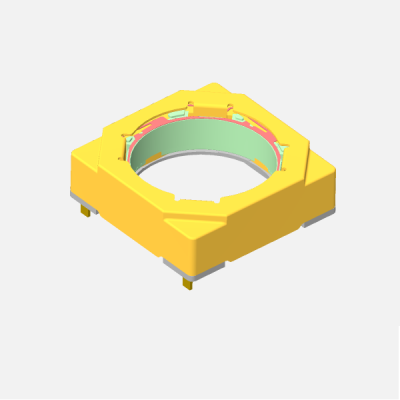

8.5× 8.5× 2.8mm Φ 6.5 16MP Af Voice Coil Motor

Product Details

Product Description

Product Description

Voice coil motor
Model No.: 03-006-098
General specification
No.	Item	Spec	Remark
1	Dimension	8.5x8.5x2.8mm	Without terminal
2	Match lens	Φ6.5
3	Weight	0.5g Max	Without lens
4	Rated current	100mA	DC
5	Max rated current	110mA	Operating status
6	Insulation resistance	1MΩ(min)	50V DC: between yoke and terminal
7	Resistance between terminals	14~25Ω	at 25±5ºC
8	Torque	20~120gf-cm
Operating and storage environment
No.	Item	Temperature	Huminity
1	Operating environment	-30~+70ºC	90%RH Max
2	Storage environment	-40~+85ºC	90%RH Max
Electronic charicteristics
No.	Item	Spec	Direction	Remark
1	Rated stroke	≥260μm(@100mA)	Upward	Lens weight ≤0.12g
2	Starting current	20~40mA	Upward	Lens weight ≤0.12g
3	Sensitiviry	3~8μm/mA	Upward	CP: C=40mA, D=60mA
4	Hysteresis	≤10μm	Upward	5mA/step, 10mA→80mA→10mA
5	Dynamic tilt	≤8'	Upward	With lens, 10~260μm
6	Posture deviation	≤50μm	Upward/Horizontal/Down	0~260μm
7	Linear	≤10μm	Upward	0~260μm
8	AF Current	≤10μm	Upward	0~260μm

Technical Parameter of Voice Coil Motor
No.	Model No.	03-006-001	03-006-002	03-006-011	03-006-012	03-006-031
1	Dimension	8.5×8.5×2.6mm	8.5×8.5×2.82mm	8.5×8.5×2.8mm	8.5×8.5×2.9mm	8.5×8.5×2.9mm
2	Match Lens	M5.0xP0.25		M5.5xP0.25		M6.0xP0.25
3	Resolution	5MP
4	Weight	0.5g
5	Weight of Lens	0.12g Max.
6	Rated Current	80mA
7	Max. Current	100mA
8	Insulation Resistance	1MΩ Min.
9	Resistance Between Terminals	14~25Ω
10	Torque	20~120gf-cm
11	Rated Stroke	200μm Min. (@90mA)
12	Starting Current	20~40mA
13	Sensitivity	3~8μm/mA
14	Hysteresis	10μm Max.
15	Dynamic Tilt	15' Max.
16	Posture Deviation	50μm Max.
17	Linearity	15μm Max.
18	AF Current	10μm Max.

Technical Parameter of Voice Coil Motor
No.	Model No.	03-006-064	03-006-065	03-006-066	03-006-067
1	Dimension	8.5×8.5×2.6mm	8.5×8.5×2.8mm	8.5×8.5×2.9mm	8.5×8.5×3.3mm
2	Match Lens	M6.0xP0.25
3	Resolution	8MP
4	Weight	0.5g
5	Weight of Lens	0.12g Max.
6	Rated Current	80mA
7	Max. Current	100mA
8	Insulation Resistance	1MΩ Min.
9	Resistance Between Terminals	12~20Ω			15~25Ω
10	Torque	20~120gf-cm
11	Rated Stroke	200μm Min. (@90mA)
12	Starting Current	20~40mA
13	Sensitivity	3~8μm/mA
14	Hysteresis	10μm Max.
15	Dynamic Tilt	12' Max.
16	Posture Deviation	50μm Max.
17	Linearity	/			15μm Max.
18	AF Current	10μm Max.

Technical Parameter of Voice Coil Motor
No.	Model No.	03-006-072	03-006-073	03-006-074
1	Dimension	8.5×8.5×2.6mm	8.5×8.5×2.8mm	8.5×8.5×2.9mm
2	Match Lens	M6.5xP0.25
3	Resolution	13MP
4	Weight	0.5g
5	Weight of Lens	0.12g Max.
6	Rated Current	80mA
7	Max. Current	100mA
8	Insulation Resistance	1MΩ Min.
9	Resistance Between Terminals	12~23Ω	10~20Ω
10	Torque	20~120gf-cm
11	Rated Stroke	200μm Min. (@90mA)
12	Starting Current	20~40mA
13	Sensitivity	3~8μm/mA
14	Hysteresis	10μm Max.	±10μm
15	Dynamic Tilt	10' Max.	9' Max.
16	Posture Deviation	50μm Max.	±50μm
17	Linearity	15μm Max.	/
18	AF Current	10μm Max.	/

---
