Turbo Micronizer Machine

Product Description

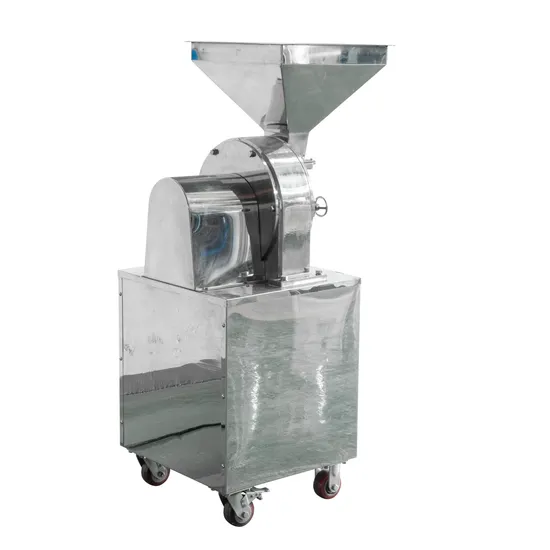

Turbo micronizer machine
Working Princible
The crushing chamber of this machine consists of a casing, door, main shaft, turbine assembly, screen assembly, feed hopper and discharge pipe. It mainly uses the vortex generated by the back of turbine blades to crush the material. When working, the motor drives the main shaft and the turbine to rotate at high speed. Since the turbine and the teeth on the screen ring maintain a small gap, the material entering the machine is ground again in the gap of the rotating airflow. During this process, the turbine absorbs a large amount of air, which plays the role of cooling the machine, abrasive and transporting fine powder. What is unique is that a certain number of moving needles and static needles are added to the turbine and the machine door respectively, achieving the purpose of pre-crushing the materials entering the crushing area. At the same time, a plane gear ring that matches the outer side of the blade end face is added to the machine door to prevent coarse particles that have not been fully crushed from running out of the crushing chamber. The crushing fineness of the material depends on the nature of the material, the aperture of the screen and the throughput of the material and air.
Performance & Characteristics
1. This machine has the characteristics of compact and reasonable structure, stable operation, convenient installation and maintenance (without foundation), small floor space, large production capacity and no dust pollution.
2. The crushing ratio is large, usually the raw materials are less than 10mm, and the crushing fineness is adjustable within the range of 20-325 meshes.
3. The equipment generates large air volume during operation and has good self-cooling function, so it can also be applied to some heat-sensitive materials.
4. This machine belongs to high-speed turbine pulverizer, with high efficiency and large crushing capacity per unit power, so the operation cost is low, the whole system configuration is reasonable, and the one-time investment cost is low.

Scope of Application
This machine is widely used in chemical, dyes, pigments, coatings, pesticides, food, feed, plastics, non-metallic minerals and other industries. It is suitable for crushing soft materials with low hardness such as brittleness and fiber.

Product Parameters

Parameter Model	WL-200	WL-300	WL-400	WL-500	WL-600	WL-800
Motor Power kw	4-5.5	5.5-7.5	11-15	18.5-22	22-30	30-37
secondary speed r/min	6000	6000	4500	3250	2930	2250
Processed Particle Fineness mesh	20-325
Production Capacity kg/h	15-150	20-200	25-500	30-1200	50-1500	60-2000
Weight kg	70	85	250	430	480	1200

Flow Chart
