The XDS100v2 is a low-cost JTAG in-circuit emulator for Texas Instruments processors. It interfaces to the host PC via USB2.0 and does not require an additional power supply. Dont forget to download XDS100v2 driver.
Theoretical speed reached 480M/s, through the 14 pin interface for simulation and debugging, support Composer Studio Code (CCS) V4 V3 and V5 to the highest version. It can be used for Windows 2000, XP, Vista, WIN8 WIN7 and other operating systems.
Features:
1. Support for the following processor cores: TMS320C28x, TMS320C54x, TMS320C55x, TMS320C64x+, TMS320C674x, ARM 9, ARM Cortex R4, and ARM Cortex A8.
2. Debugging function(connect / disconnect, read / write memory, read the register, load the program, run, stop steps to support the breakpoint debugging, real-time mode).
3. Supports On-Chip Flash Programmer(e.g. C2000).
4. Support targets with 14-pin TI JTAG connector as used by Texas Instruments embedded processors.
5. Support for USB2.0 High Speed (480 Mbit/s).
6. Support for Code Composer Studio v4 and newer (Does not support Code Composer Studio v3.3).
7. Support CCS5.2.
8. Support for power-off test and Adaptive Clock.
9. Support for Windows XP/Vista/Win7.
XDS100V2 JTAG Application:
debugging projects
ARM-based projects

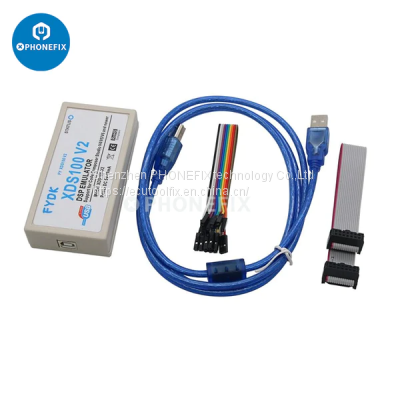

Package Includes:
1 x XDS100 V2 Emulator.
1 x High-end USB2.0 High-speed Cable.
1 x High-grade Imported 14-pin JTAG Cable.
1 x Network Connection Disk, there are CCS4.2 and CCS5.0 version of the software, with crack files and detailed decryption methods.
>>
