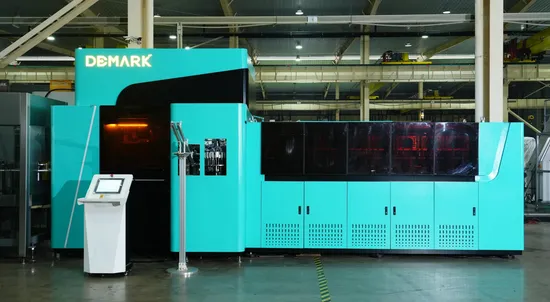

Full Automatic Plastic Pet Preform 4 Cavity Filling Water Oil Bottle Container Stretch Blowing Mould Machine

Product Description

Product Description
Full Automatic Plastic Pet Preform 4 Cavity Filling Water Oil Bottle Container Stretch Blowing Mould Machine
Introducing the Full Automatic Plastic Pet Preform 4 Cavity Filling Water Oil Bottle Container Stretch Blowing Mould Machine, a cutting-edge solution designed to revolutionize the production process of plastic bottles. This state-of-the-art blowing machine combines advanced technology with unparalleled efficiency, making it an indispensable asset for any manufacturing facility.
With its full automatic functionality, this machine eliminates the need for manual intervention, ensuring a seamless and streamlined production process. The 4 cavity design allows for the simultaneous production of multiple bottles, maximizing output and minimizing production time. This not only increases productivity but also reduces labor costs, making it a cost-effective choice for businesses of all sizes.
Equipped with a blow moulding system, this machine is capable of producing high-quality plastic bottles with precision and consistency. The stretch blowing technology ensures that each bottle is perfectly formed, with uniform thickness and impeccable clarity. This makes it an ideal choice for a wide range of applications, including water, oil, and other liquid containers.
The Full Automatic Plastic Pet Preform 4 Cavity Filling Water Oil Bottle Container Stretch Blowing Mould Machine is designed to meet the highest industry standards. Its robust construction and durable components ensure long-lasting performance, even in demanding production environments. Additionally, the machine is equipped with advanced safety features, guaranteeing operator protection and minimizing the risk of accidents.
This blowing machine is incredibly user-friendly, with an intuitive interface that allows for easy operation and monitoring. The touch screen control panel provides real-time information on production status, allowing operators to make adjustments and optimize performance as needed. Furthermore, the machine is designed for easy maintenance, with accessible components and a user-friendly maintenance schedule.
Investing in the Full Automatic Plastic Pet Preform 4 Cavity Filling Water Oil Bottle Container Stretch Blowing Mould Machine is a wise choice for businesses looking to enhance their production capabilities. With its advanced technology, efficient operation, and exceptional quality output, this machine is sure to exceed your expectations and drive your business towards success. Don't miss out on this opportunity to elevate your manufacturing process and stay ahead of the competition.
Working Process

Working process as follows:
Put performs into hopper → Elevator send performs to arraying system → Array the preforms → Perform loading → Preform heating → Robot put the heated performs into moulds Lock the moulds and start blowing → Finish blowing→ Robot takeout the bottles → Bottle outlet The electric control system can make control of automation, carrying out strict control in the process of elevating, arraying, loading, heating and blowing. Human interface achieves central control. Working principle of blow molding machine:
Main wheel of equipment rotates in high speed. The encoder at the top of equipment and sensors installed on the main wheel test the angle of rotation and give computer feedback. Then in accordance with the operator of the procedures it set (angle) issued directives to executing agency(electromagnetic valve). The implementation process of blowing on a specific time, resulting to complete the process of a two-step blowing and produce qualified products in rotating equipment. Product Parameters

ITEM	UNIT	DMK - RBl6
Productivity	bottle/h	2000 BP/H
Volume	L	3-10
Material		PET
Max .diameter	mm	220
Max . height of preform	mm	≤160
Max . height of bottle	mm	≤380
Power		380V50Hz
Installation power	KW	240
Cavity		6
Dimension of main machine	mm	3.6×3.5 ×3.7
Weight	T	16

Features
1. Air compressor without oil: supply needed working pressure in the normal working(0.8Mpa) and high pressure for completing high pressure blowing.
2. Water chiller: The cooling system consist of cooling tower supplies cooling effect for air compressor without oil, blowing machine, hot water chiller and temperature control(oil).If the bottle is for water or carbonated, the cooling tower supply cooling water for buttom bottle mould and bottle mould; It needs hot water machine and temperature control(oil) if it is hot-filling bottle.
3. Hot water machine: the function is supplying steady hot water for buttom of mould, make the buttom of mould have steady temperature, ensure the blowing temperature.
4. Temperature control: the function is mainly provide a stable temperature for bottle body mould, make crystal of bottle material, meet the hot-filling requirements for bottle distortion. Heating media used in temperature control is industrial heat conductivity oil.
