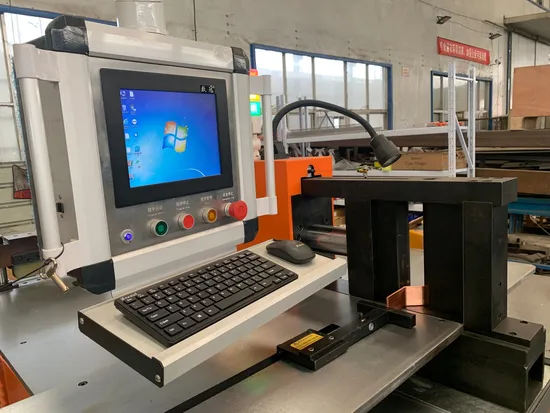

Turret Type Multifunction Busbar Processing Machine

Product Description

Advantages:
1.The shearing unit adopts overall structure, its design is new and unique, proper stress, which
guarantees long time usage without deformation.
2.The Bend Unit adopts overall structure,angular CNC method, operation is simple and highly accurate.
3.The machine adopts dual layer platforms design scheme,three units can be operated at the same
time.
4.The machine is equipped with auto refueling and draining system.
5.The machine adopts stainless steel oil tank,so no corrosive degeneration of the hydraulic oil and extension the usage life span of hydraulic oil and each sealing parts.
6. PLC control,stable and reliable.
Configuration:

Dimension of platform(mm)	Weight (Kg)	Number of motor	Total power of motors(KW)	Work voltage (V)	Nmumber of hydraulic station and pecification (Mpa)
Layer1 1200×1000	1460	3+1	11.37	380	3×31.5
Layer2 840×370

Main Technical Parameter

Items	Materials	Processing Thichness × Width	Maximum punch	Maximum output power
Punch Unit	Copper/Aluminum	Thickness 15mm	¢30 (Thickness<10mm) ¢ 25 (Thickness<15mm)	350KN
Shear Unit	Copper/Aluminum	15×160mm		350KN
Bend Unit	Copper/Aluminum	12×120mm		350KN

Package and Shipment:
Customer's Compliment:

---
