Hollow Concrete Block Production Line Cement Brick Making Machine

Product Description

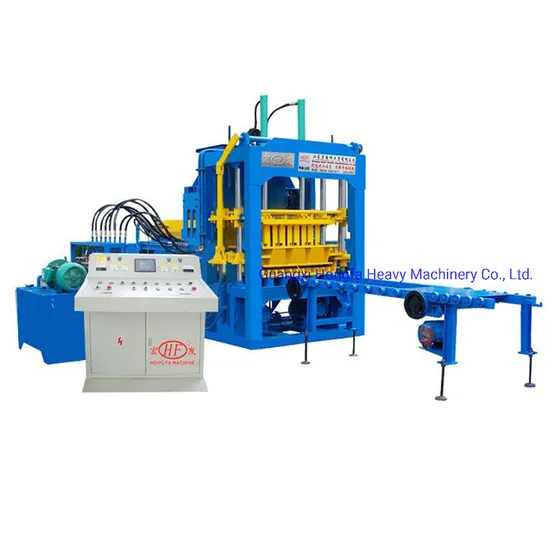

QT4-15D Block making machine:
Brief introduction:
1. The machine adopts hydraulic system and the working procedure is very even and dependable, hydraulic press together with efficiently vibration make the shape, it which has high density and good quality.
2. It is a practical machine that simple in structure, artistic in figure. Especially suitable to the production of the standard bricks, it can produce various kinds of paving bricks, porous bricks, roads bricks etc.
3. The reasonable material proportion have the capacity of making high-density standard bricks, what's more, it can be piled up directly.
Control system:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple trained one to the operator.
Main Technical Specifications:

Overall Dimension	7100*1600*2610(mm)
Rated pressure	16MPa
Main vibration form	Platform vibration
Cycle Time	15-25seconds
Vibrating Frequency	4600 rolls/minute
Overall weight	4800kg
Motors Power	27.5KW
Pallet Size	1020*570(mm)
Raw Materials	crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes
Applied Products	concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

Production quantity:

Item	Size(mm)	Molding cycle	Pcs/Mold	Pcs/hour	Pcs/8hours
Hollow block	400x200x200	15-20s	4	720-960	5800-7700
Solid brick	240x115x53	15-17s	28	5930-6700	47500-53600
Paving brick	220x110x50	20-25s	16	2310-2880	18500-23000

We make mould according to block/brick size and shape,so customers can get different type blocks or bricks,and production efficiency is also different.
Product scope: It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
We also according to customers' production quantity to offer them relevant bock making machies ,and like:QT12-15,QT10-15,QT8-15,QT6-15... block making machines options.
Hongfa products are popular at home and abroad,and exported to the United States,Russia,Australia,Brazil,India,Myanmar,Vietnam,Thailand,Sudan,north Korea and Dozens of 96 countries and regions .Price, quality and service deeply welcomed by foreign customers.
Guangxi Hongfa heavy Machinery Co.,Ltd is located in yiling industrial zone Nanning city,Guangxi,China.Which covers an area of 60,000 m2, building area of 23000 m2 , and has 24 senior engineers and engineers, and 180 technical personnels.
HONGFA was founded in 1990,which is a large-scale private enterprise with R&D, manufacture and sales.And specialize in block machine, block making machine, concrete block machine, concrete block making machine, brick machine, AAC block making machine, AAC plant ; (EPS) light weight Production line,Wall panel machine; mixer, concrete mixer, mixing plant, concrete mixing plant, concrete batching plant; tile machine, concrete tile machine, tile making machine, concrete tile making machine, concrete pipe machine, pipe making machine, concrete pipe making machine.With 27 years experience,it is worth to take consideration from us.
Our service:
1.Guarantee period:12 months after block machine finished installation and after sale service for whole life.
2. Installation: for production line Hongfa will send technicians to install machines and free train customer's workers.
3.Technical service:offer free design ,free technology supprot,free site planning.
FAQ:
1.How can I trust the machines quality?
Our products passed ISO9001-2000 and CE identifications, and we making machines for 27 years,with full experience,updating technical idea and application.Furthermore our machines have been exported to more than 96 countries and always have a good reputaion from our oversea customers.We will do fully test our products before shipment,make sure every equipment work well when they come to your hand.
2.When do you delivery the goods?
Normally 20 days after receipt of deposit and moulds confirmation from Buyer.
3.What about the payment?
30% as down deposit by T/T ,70% as the balance paid by T/T before loading(L/C is also acceptable).
4.Does the price include the mould?
Yes,the above price includes one mould for free, extra moulds should be paid according to design.
