Product Details
Product Description
Product Description

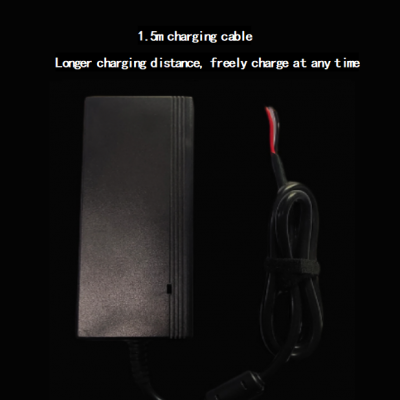

150W desktop power adapter
Industrial-grade efficiency, safety certification
Passed **IEC62368 (audio and video/IT equipment safety)** certification, complies with international electrical safety standards, is specially designed for high-power equipment, supports continuous large current output, is suitable for all-in-one machines, industrial lamps, energy storage equipment and other scenarios, and is guaranteed both safety and stability.
Dual high-power output, fast charging
. 12V/10A (120W): adapted to long-term operating equipment such as security systems, monitoring equipment, multi-disk NAS;
. 19V/7.89A (150W MAX): Meets the power supply needs of high-energy-consuming equipment such as mini PCs, workstations, 3D printers, and is 30% higher than that of traditional power supplies.
Desktop design, professional scene optimization
. Compact metal shell: all-aluminum body assists heat dissipation, supports continuous operation of 7×24 hours, and the surface temperature is less than 55℃;
. Multi-interface expansion: optional DC 5.5×2.5mm/4.0×1.7mm interface, compatible with mainstream equipment wires;
. Intelligent temperature control fan: low-noise variable frequency heat dissipation (noise 50% automatically starts to ensure efficient heat dissipation.
Wide range voltage, precise regulation
. Global input: 100-240V AC adaptive, compatible with power grids in Europe, America, Asia and Africa;
. Constant voltage and constant current mode: supports fine adjustment of output voltage ±5% (12V/19V can be switched), free setting of current 0.5A-10A, accurately matching equipment requirements;
. Multiple protection: four-fold protection for overvoltage, overcurrent, overtemperature, and short circuit. The fault automatically cuts off power and triggers LED alarm.
Full scene coverage, commercial-grade power supply
. Office/industry: all-in-one machine, industrial LED light strip, laser engraving machine
. Smart home: home energy storage system, smart central control host
. Professional equipment: live fill lights, medical testing instruments, drone charging stations
. Emergency backup: auxiliary power supply of server room, outdoor mobile power station
Customized services, flexible empowerment
It supports custom output specifications (such as 24V/6A, 48V/3A, etc.), interface type (USB PD 100W+DC interface) or case material (shock/dust/splash-proof), and provides multi-equipment parallel power supply solutions to meet advanced needs such as industrial automation.
Technical parameters:
Input: 100-240V AC 50/60Hz, power factor ≥0.9
Output: 12V/10A or 19V/7.89A (peak 150W), conversion efficiency ≥90%
Size: 150mm×80mm×35mm (portable desktop type)
Certification: CE, RoHS, FCC Class B (EMC standard)
Core advantages:
. Industrial protection: 6kV lightning surge resistance, adapting to the complex power grid environment of the factory
. Intelligent frequency conversion heat dissipation: 40% energy saving than traditional fans, with a lifespan of more than 50,000 hours
. Multi-device compatibility: One machine replaces multiple low-power adapters, saving space and cost
. Accurate adjustable output: meets the strict voltage requirements of scientific research and medical equipment
