OEM /ODM Windows Intel Core I7 8569u Desktop Mini PC

Product Description

Product Description CPU: Onboard 8th Gen Whiskey Lake 14nm CPU Intel Core i7-8569U Four Cores Eight Threads 2.8GHz up to 4.7GHz(Turbo boost Technology)
8MB cache TDP 28W Intel® UHD Graphics 655.
Key Features & Benefits: - Multiple processor - Intel 8th/9th/10th Gen Core i3/i5/i7 for option as per your requirements at cheap price.
- 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB.
- One embedded SIM card slot onboard for 3G/4G Wi-Fi module.
- Support VGA + HDMI 1.4 dual display output synchronously.
- 4 x Intel i225 2.5G RJ45 LAN and 6 x COM can change to RS232/422/485 from BIOS.
- Support Watchdog, Reset, PXE.
Product Parameters

Basic Information:			Input/output port:
CPU	Intel Core i5-8265U / i7-8565U / i5-8269U / i7-8569U Intel Core i5-10210U / i7-10510U / i7-10710U / i3-10110U		Switch	1 x Power On/Off Switch
			Power	1 x 3pin phoenix terminal power supply input, support 9~36V
TDP	Refer to CPU		Bution	1 x ATX/AT quick switch
BIOS	American Megatrends Inc. 5.12		PS/2	1 x PS/2(keyboard and mouse 2 in 1)
Chipset	Intel KABYLAKE		USB	2 x USB2.0, 4 x USB3.0
			Display	1 x VGA, 1 x HDMI 1.4
Memory	2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB Dual channel, DDR4-2400, LPDDR3-2133
			LAN	4 x GbE RJ45 Intel i211/i210
			COM	6 x COM ports, can change to RS232/422/485 from BIOS
OS	Windows® 10, WES 7/10, LINUX
			SIM	1 x embedded SIM card slot onboard
PXE	YES
			GPIO	1 x GPIO( 7pin input, 7pin output)
Audio	Intel Kaby Lake HDMI @ Intel Sunrise Point-LP PCH - High Definition Audio Controller		Audio	1 x MIC, 1 x SPK
Network	Intel(R) i225 2.5G Network Connection 10/100/1000/2500Mbps BaseT LAN		Others	1 x Reset, 1 x CMOS clear button, 2 x 2pin/3pin Phoenix terminal power supply input
			Storage:
Video	Refer to CPU
			MSATA 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
Wi-Fi:			SATA 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
			M.2 1 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(Only NVME PCIe3.0x4), support 6Gb/s
Module	1x mini PCIE-full slot for 3G/4G module 1x mini PCIE-half slot for wifi module
			Product Dimension & Details:
Antenna	2 x inner RF cables and 2 x external antennas		Size	249 x 150 x 86mm
Power and Working Environment:			Weight	Net 1.3kg, Gross 2kg
			Shell	Black color aluminum alloy(any customized color for bulk order)
Input		DC100-240V AC/50-60Hz	Mounting	4 mounting holes on case
Output		DC +9V~+36V, recommend 12V/5A	Cooling Mode	Fanless
			Functions	Watchdog,Resst, PXE
Operating Temperature		-30/+70 Centigrade
			Package Content:
Storage Temperature		-20/+60 Centigrade
			Standard 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Relative Humidity		10%~90%@30 Centigrade(non-condensing)
			Optional Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag

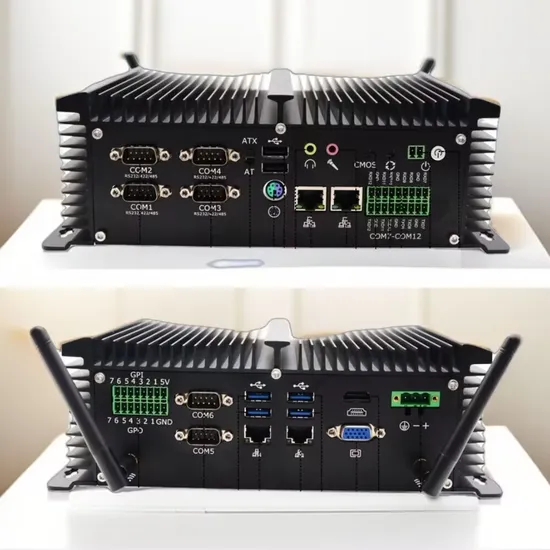

Detailed Photos
FAQ Q: What is the expected lifespan or durability of the product? A: Our product has an expected lifespan of above 5 years and is designed to withstand heavy use in industrial environments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for more than 13 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on returns and refunds?
A: We have a flexible returns and refunds policy that allows customers to return products within 15 days of purchase for a full refund or exchange. We also offer warranties on our products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including CE/FCC/ROHS .
5 . Q : Are the prices and specifications final?
A: No, because every customer have different requirements.Meanwhile We will update our products gradually .Above specifications and prices are only for reference .The final specifications and prices are based on the actual products. Ple

---
