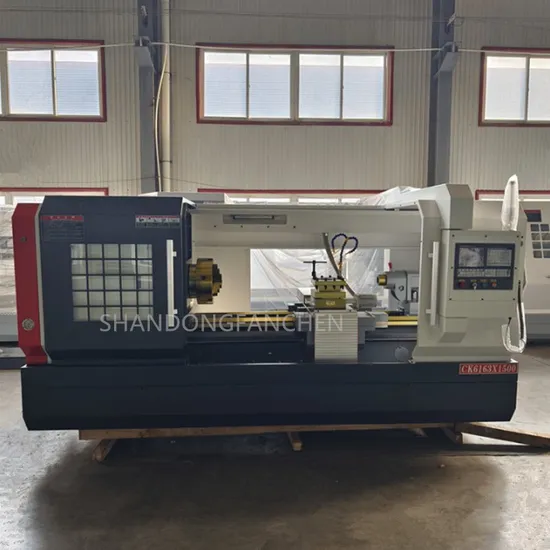

Ck6163X1500 CNC Lathe for High-Precision Automatic Machining of Large Horizontal Hard Rail Through Holes

US$12,000.00-18,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
CK6163
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Turning Diameter of Bed Surface
630
Maximum Working Length
750/1000/1500/2000/3000
Tool Rest Form
Electric Four-Station
Machining Accuracy
High
Inner Diameter of Spindle Through Hole
Φ105
Width of Guide
400
Spindle Drive Form
Three Speed Endless Shift
Spindle Speed
30-835r/Min
Motor Power
11
X-Axis Travel
315
Transport Package
Wooden
Specification
2600× 1500× 1650
Trademark
FANCHEN
Origin
China
Production Capacity
10

Packaging & Delivery

Package Size
3600.00cm * 3800.00cm * 1800.00cm
Package Gross Weight
2200.000kg

Product Description


item unit CAK6163
Guide span mm 400
Maximum workpiece length mm 1000/1500/2000/3000
Maximum turning length mm 850 1350 1850
Swing diameter on skateboard mm 320
Chuck form (manual) mm 400
Spindle through hole diameter mm 105
Repositioning accuracy of tool holder transposition mm 0.008
X-axis travel mm 315
Spindle speed gear mm 17-1000Fourth gear 17-1000
Workpiece accuracy IT6-IT7
Workpiece surface roughness μm Ra1.6
Tailgate sleeve diameter/stroke mm 100/250
Taper of tailstock taper hole 6Six Mohs
Tool rest form Vertical four-station
Motor power kw 11
Maximum turning diameter of bed mm 630

1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) FAQ
