OEM High Quality Multicore Outdoor Air Blown Micro Duct Fiber Optic Cable, Multi-Layer Twisted Non-Metallic Air Blown Optical Fiber Cable with Good Price

Product Description

OEM high quality Multicore Outdoor Air Blown Micro Duct Fiber Optic Cable, Multi-Layer Twisted Non-Metallic Air Blown Optical Fiber Cable with good price
Description:

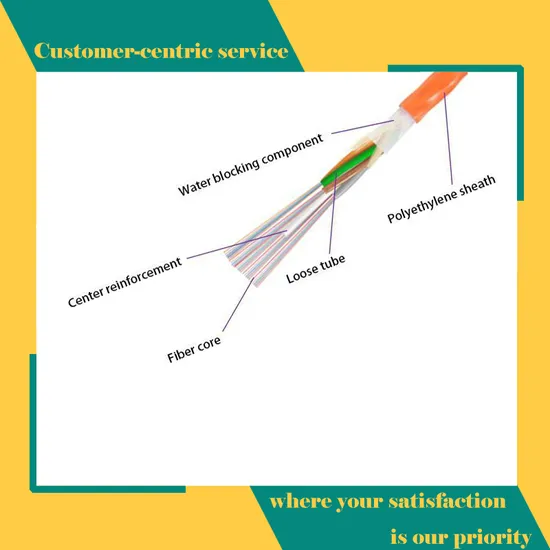

The structure of gcyfty optical cable is that single-mode or multi-mode optical fiber is sheathed in a loose sleeve made of high modulus polyester material, and the sleeve is filled with waterproof compound. The center of the cable is a non-metallic reinforced core. The loose tube is twisted around the central reinforced core to form a compact round cable core. The gap in the cable core is filled with water blocking filler, and the cable is longitudinally wrapped with polyethylene sheath.

Application: Suitable for aerial or pipeline laying method.
Features: Optimum cable structure, high fibre density Accurate fibre length balance, ensure stable performance. Structure Innovation in sheath, enhancing the blowing performance.
Mechanical Parameters:

Optical cable model	Core	Cable OD mm	Weight Kg/Km	Allowable Tensile Strength (N)	Crush Resistance Long Term/Short term (N/100 mm2)	Min. Bending Radius mm
GCYFTY	12~72	5.6±0.1mm	27±2	500	300/800	10D/20D
GCYFTY	96	6.4±0.1mm	40±2	1000	300/800	10D/20D
GCYFTY	144	7.8±0.1mm	55±2	1000	300/800	10D/20D
Blowing Tool		Typical Blowing Length
PLUMETTAZ: PR-140, MiniJet-400 etc.		Fiber account	Duct Type 8.0/10.0mm		Duct Type 10.0/12.0mm
		12~72	≥ 1800m		≥ 2300m
		96	≥ 1800m		≥ 2300m
		144	/		≥ 1200m

note:For more details, please contact our sales
-----------------------------------------------------FAQ------------------------------------------------------
Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.

---
