Stainless Steel Diaphragm Bourdon Tube Pressure Gauge 0-100MPa Oil Pressure Gauge

Product Description

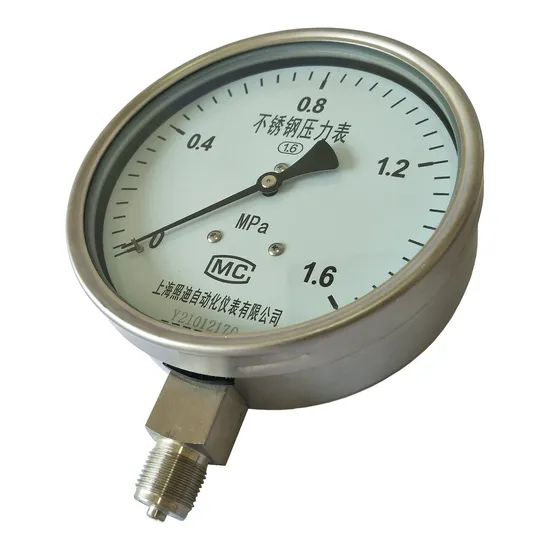

Stainless steel diaphragm Bourdon tube pressure gauge 0-100MPa oil pressure gauge
Product Description
CHAUDI stainless pressure gauge are widely used for measuring the pressure of various fluid media with high corrosion proof and high temperature resistance in industries such as petroleum,chemcial,filber,power station,food.The meter is made of direct contact joint and pressure sensing element materials, icr18ni9t, ocr18ni12mo2ti and SUS316, and the structure is fully sealed.
Technical Detailes

Name	Stainless pressure gauge
Dials Size	2.5"(60mm) 4"(100mm) 6"(150mm) 8"(200mm)
Measure Range	-0.1-0-100MPa (KPa , Bar , PSI can be customized)
Accuracy	1..0 , 1.6 , 2.5
Medium	Liqudi , Gas , Oil , Water avaible
Case	sus304 sus316
elastic element	sus304 sus316
joint body	sus304 sus316
Movement material	sus304 sus316
Window	Oganic glass
Shockproof filling material	Glycerin 98% (silicone oil, fluorine oil or other types can be selected)
Working Temperature	-25 ~ 70 ºC (the shell is filled with liquid) ; -40 ~ 70 ºC (the shell is not filled with liquid)
weight	0.35Kg (60mm) ; 0.85Kg(100mm) ; 0.95kg (150mm)
Connection Type	Thread (NPT1/2 , G1/2 , G1/4 , M10*1 , M20*1.5...can be customized) Note: when there is special requirements for the thread of instrument joint, the user and the manufacturer shall negotiate to solve the problem
