Heat Resistant Bottle Pet Strech Blow Moulding Machine

Product Description

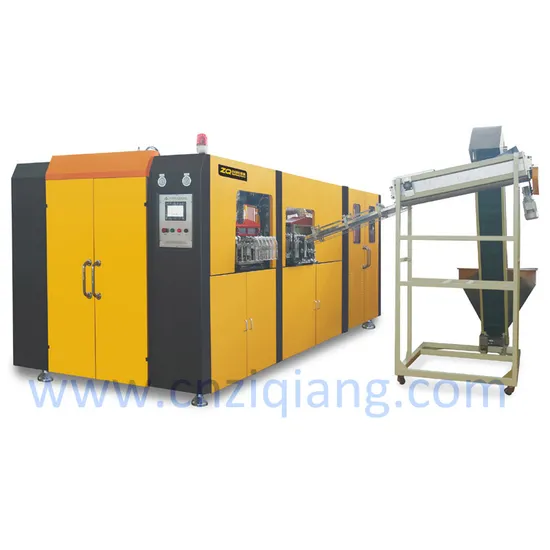

Heat Resistant Bottle PET Strech Blow Moulding Machine
5500-6000 bottles/hour, max 0.6L, 4 cavity
ZQ-B series full-automatic pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has one to two cavities and the maximum capacity of the products is 0.6L and 2.0L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
Heat Resistant Bottle PET Strech Blow Moulding Machine
1). High Automatization
2). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3). High Quanlity: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4). High Speed: 2700BPH(2-cavity).
5). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6). Low Cost: Low consumption of electricity, air and water.
7). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
Heat Resistant Bottle PET Strech Blow Moulding Machine,equipment information.

TYPE	ITEM	ZQ-B600-2	ZQ-B600-3	ZQ-B600-4	ZQ-B600-6
CONTAINER	Number of cavity	2 cavities	3 cavities	4 cavities	6 cavities
	Output	2400-2700 pcs/hr	3000-3300 pcs/hr	5500-6000 pcs/hr	7000-8000 pcs/hr
	Max. container volume	0.6L	0.6L	0.6L	0.6L
	Max. neck diameter	38mm	38mm	38mm	28-30mm
	Max. container diameter	65mm	65mm	65mm	60mm
	Max. container height	230mm	230mm	230mm	260mm
ELECTRICAL SYSTEM	Number of lamp	21pcs	28pcs	35pcs	56pcs
	Max. heating power	21kw	28kw	32kw	34kw
	Installation power	24kw	28kw	32kw	48kw
	Actual power consumption	14kw	18kw	22kw	24kw
AIR SYSTEM	Operatating pressure	7-9kg/cm²	7-9kg/cm²	7-9kg/cm²	7-8kg/cm²
	Low pressure consuming	1000Ltr/min	1200Ltr/min	1600Ltr/min	1600Ltr/min
	Blowing pressure	25-35kg/cm²	25-35kg/cm²	25-35kg/cm²	25-35kg/cm²
	High pressure consuming	1500-2000 Ltr/min	2000-2200 Ltr/min	2200-2500 Ltr/min	2000-2200 Ltr/min
CHILLER WATER	Operating pressure	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²
	Temperatuer	10º C	10º C	10º C	10º C
	Consuming	5600kcal/hr	5600kcal/hr	5600kcal/hr	8000kcal/hr
	Flow rater	30Ltr/min	30Ltr/min	30Ltr/min	88Ltr/min
MACHINE	Machine dimension	2.3x1.5x1.7(m)	3.5x1.95x2.1(m)	3.7x1.95x2.1(m)	5.0x2.1x2.1(m)
	Machine weight	1.8ton	3.6ton	3.7ton	5.0ton

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.

---
