PVC Winding Pipe/Fiber Reinforced Tube Production Extrusion Machinery

Product Description

Plastic Soft PVC Garden Fiber Braided Reinforced Pipe Flexible Hose/Corrugated Pipe Extrusion Making Machine
PVC fiber reinforced hose extrusion machine line Which mainly used to produce PVC fiber reinforced hose, also named as PVC net hose, snake hose. The finished product is soft,non-toxic, transparent, pressure resistance, tensile resistance and corrosion resistance; it is suitable for pressure corrosive gas, liquid transportation, lawn/garden watering, widely used in chemical, agricultural and construction industries.which can also produce HDPE silicon core pipe, PP-R, PE and PEX pipes.
This line consists of main extruders, water cooling tank, haul off machine, fiber braiding machine, coiler etc,.
which has reasonable design, unique structure, stable performance, easy operation and maintenance, constant production capacity, warmly welcomed by customers. Features: SJ series single screw extruder Mould for precise pipe shaping Vacuum cooling tank for rapid cooling Spray cooling tank for larger pipes Haul-off machine for continuous production Cutting machine for accurate pipe length Stacker for organized storage Optional Auxiliary Machinery: Hot & cooling mixer Crusher for recycling Milling machine for further processing Belling machine for pipe end shaping
PVC High Pressure Fiber Braiding Hose Extruder Machine / Production Line Machinery Informations:

Model/dato	Diameter	Extruder	Speed	Max capacity	Installed power	Dimension	Weight
SJ20	10-20mm	SJ45/28	1-10m/min	40kg/h	30kw	20*3.5*2.5m	8.5t
SJ40	16-40mm	SJ65/28	1-8m/min	80kg/h	60kw	25*3.5*2.5m	10t
SJ50	20-50mm	SJ75/28	1-5m/min	100kg/h	75kw	28*3.5*2.5m	13t

Application & Features: 1.The production line is used in producting pvc reinforced pipe, which is widely used in the fields of industry,agriculture, forest, architecture etc. 2.Completed with two single screw extruders, one yarn braid machine and other auxiliary. 3.With different dies,it can produce different soft pipes.The PVC Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake skin pipe, is widely used to convey the middle pressure or corrosive gas and liquid. 4.Now it is widely used in such fields as mechanical engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas-canisters). At the present time, it is widely used to the irrigation pipe to the garden and lawn.
Production process flow: Raw material + additive→Mixed granulation→delivery → Single screw extruder →Extrusion die→Spray cooling water tank→Belt traction→Fiber winding machine→Preheat the oven→Single screw extruder→Extrusion die→Spray cooling water tank→Belt traction→Winding machine→Finished product inspection and packaging
Single Screw Extruder (one inner layer pipe extruder, one coating layer pipe extruder )
There is 45/30,50/30,65/30... etc extruders according diameters and ouput.
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality sheet extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel >940, the surface of screw is chromeplated Feeding bush with water cooling system
Inner Layer Pipe Extrusion Die head
The die head is made by 40Cr moulds materials.
Using mica heating way Coating layer Pipe Extrusion Die head
The die head is made by 40Cr moulds materials.
Using mica heating way
Markline extruder It could extrusion a colorful markline/strip on pipe surface. It is popular choosed.
Pipe Water Tank(two sets)
It is adopted stainless steel materials,2500mm cooling length.

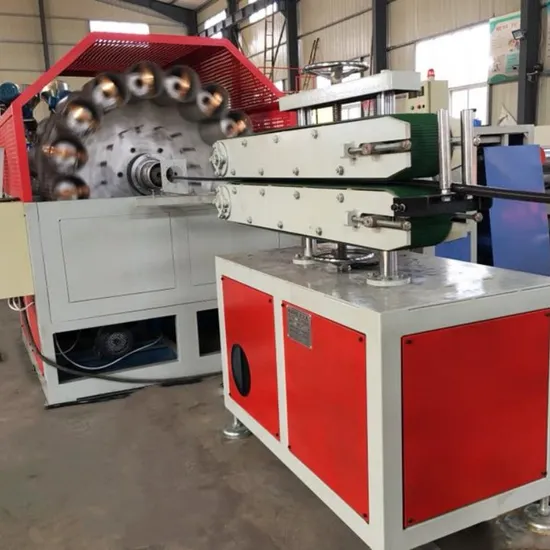

Braiding UnitIt is working for fiber yarn braiding layer. Motor:4.4kw Control way: inverter
Markline extruder It could extrusion a colorful markline/strip on pipe surface.It is popular choosed.
Electric Control Unit Switch and Button brand:CHNT/SchneiderTemperature Controller:OmronInverter:Siemens/ABB/DeltaContactor:Siemens
1. We not only provide machines but also offer technical guide and market evaluate.2. We will provide all the machines for the complete production according to customer's requirements.3. We will provide complete service for factory layout and other information to help customer to build the factory.4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.5. Except one year quality guarantee, we will provide after-sell service for all the life.6. For long-term cooperation, we always provide good quality, good price and good service to customer.
Packaging and shipping:
FAQ
Q1.How to pay to you? A:1)30% of total amount paid by TT as advance, then the seller start production
2)after the machine is finished ,buyer come to test the machine in seller's factory ,
and then pay the 70% balance by TT or irrevocable L/C at sight . Then seller ship the machine.
Q2.How long is the delivery time?
A: For standard machines, it would be 30 days; For non-standard machines and customized machines according
to client s specific requirements, it would be 45 days.
Q3.Do you arrange shipment for the machines?
A:Yes,for FOB or CIF price, we will arrange shipment for you.
Q4.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List,
Commercial Invoice, B/L, and other certificates as required by clients.
Q5.What's your after-sales service ?
(1)The supplier provides service manual and maintenance instruction of main electric appliances, limb, usage manual of equipment. We also supply water, electricity, gas of equipment and installation drawing.
(2)The supplier is responsible for installation, debugging and training, but the air tickets, insurance, eating, housing and every day 100 USD for each engineer will be born by the buyers. We will realize guarantee of repair; replacement and refund of substandard products within one year after the machine leaves factory. And half a year for electric parts. Fittings of the machine will be supplied at preferential price after one year.

---
