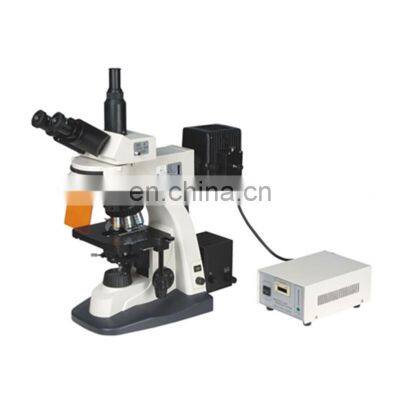

laboratory fluorescence optical microscope with digital display mercury lampXYL-606Characteristics:1.Super wide viewing field eyepiece.2.Stray light suppression system: Leading strong stray light out of light path and absorb it, greatly increased the Signal-to-Noise Of the image of fluorescence microscope.3.High precision revoiver system: conversion of the file-band G,B,BV,V,U, flexible and soft and accurate positioning and ensure that each wave band can be illuminated by excitation light fully and equably.4.Large N.A. Plan-achromatic fluorescent objectives, greatly increased the fluorescent intensity.Technical data:SpecificationViewing HeadCompensation Free Binocular Head Inclined at 30°(50mm-75mm)EyepieceWF10×/22mmObjectiveInfinite Apochromatic Fluorescent Objectives: 4×/N.A.O.15,10×/N.A.O.35,20×/N.A.0.6,40× (S) /N.A.O.75NosepieceSextuple NosepieceStageDouble layer mechanical stageStage Size: 180mm×160mmMoving Range: 80mm×50mmCondenserN.A.1.25 Abbe condenser with iris diaphragm and filtersFocusingCoaxial coarse&fine focusing adjustment with rack and pinion mechanism. Fine focusingscale value 0.002mmLight SourceTransmission Illumination: Halogen Bulb 12V/30W, Brightness AdjustableEpi-Fluorescent Illumination: 220V(110V) .Ultra-high pressure Mercury Lamp100W/DC. Digitaldisplay mercury lamp constant powerFluorescent BoxG,B,BV,V,U Wave BandOptional AccessoryEyepiece: WF16×/17mm,WF20×/12.5mm1.3Mega,2.0 Mega,3.0 Mega,5.0 Mega pixels CMOS Digital camera eyepieceInfinite Plan Objectives: 4×,10×,20×,40×(s),60×(s),100×(s)oilInfinite fluorescent Objectives:100×(dry)/N.A.0.9Y Wave band fluorescent boxLight Source: Halogen Bulb 12V/50W,12V/100WPhotography attachment and CCD Adapter0.5×,0.57×,0.75× Please send inquiry>> If you need any detail packing information, please contact us>> If you have any question, please contact us>>
>>
