China Pege Cryogenic Deburring for Efficient Rubber and Plastic Flashes

Product Description

Discover China’s Premier Manufacturer of Automatic Rubber and Plastic Burr Cleaning Machines
Product Description Experience the seamless removal of rubber/plastic burrs with our advanced cryogenic technology. As temperatures drop, rubber and plastic parts undergo a transformation into a hardened, brittle state, losing their inherent flexibility. During this fragile phase, the minor flashes of molded products—much thinner than the main component—become brittle sooner than the product itself. Our revolutionary cryogenic deflashing machine leverages this pivotal moment, using high-speed, specialized plastic media to gently and efficiently eliminate brittle burrs without compromising the integrity of the product. Achieve impeccable results with precision every time.
Key Functionalities
Our state-of-the-art machine is indispensable for the removal of flashes in small rubber and plastic components, such as O-rings, gaskets, and other intricately molded parts.
Employing cutting-edge cryogenic processing technology, our machines expertly freeze and then deploy high-speed projection media (Polycarbonate blast) to eradicate flashes, significantly enhancing the surface quality of molded rubber and plastic parts.
Technical Specifications

TECHNICAL INFORMATION
MODE	PG-60T	PG-80T	PG-100T/120T	PG-150T

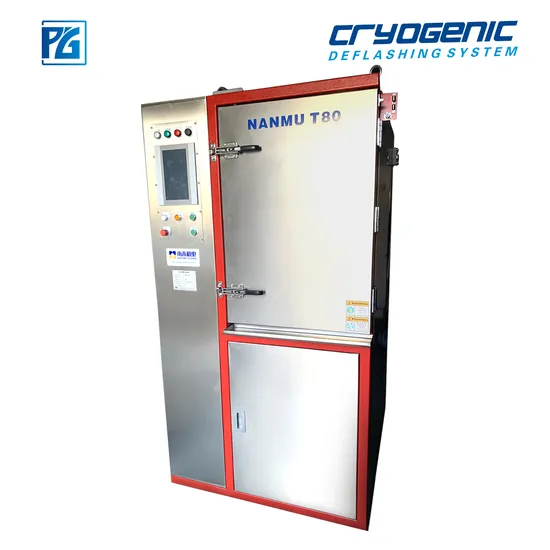

MACHINE PHOTO
SIZE(L*W*H)	1000*1000*1950MM	1100*1200*2000MM	1200*1250*2200MM	1300*1350*2250MM
WEIGHT	700KG	850KG	1000KG	1500KG
POWER	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz
ELECTRICTY	6Kw*3Ph	7Kw*3Ph	8Kw*3Ph	9Kw*3Ph
TEMPERATURE	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC
PRESSURE	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa
BARRAEL CAPACITY	60L	80L	100L or 120L	150L
EFFECTIVE CAPACITY	20L	30L`	40L`	50L`
WHEEL SPEED	3000rpm - 7200rpm	3000rpm - 7000rpm	3000rpm - 7000rpm	3000rpm - 7000rpm
COOLING MEDIA	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen
OPETATION MODE	Touch Screen	Touch Screen	Touch Screen	Touch Screen
FRAME	SUS304 WITH SOME RED PAINT ON CERTAIN AREA
WHEEL DIAMETER	AL φ250mm	AL φ300mm	AL φ350mm	AL φ350mm
BLASTING SPEED	105.7m/s	123.3m/s	143.3m/s	143.3m/s

Internal Component Imagery
Versatile Applications
A. O-rings and a variety of irregular rubber components, accommodating diverse materials and sizes.
B. Essential components for micro-electronic devices.
C. Precise elastomeric components that demand meticulous attention.
D. Precision-engineered injection molded plastic parts.
E. Tailored R & D part runs for specialized needs.
F. Die-cast products, including zinc, aluminum, and magnesium alloy components.
Outstanding Features
Unmatched Efficiency: Our advanced machine can effectively replace the labor of approximately 60-80 workers, ensuring rapid flash removal.
Exceptional Precision: Capable of removing minuscule and hardened flashes beyond manual capabilities, enhancing product precision.
Cost-Effective: With its lower operational costs, our machine provides an economical alternative to manual flash processing.
Our State-of-the-Art Workshop
Secure Packing Solutions
Reliable Shipping Services

---
