Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Certification
CE, ISO9001: 2000
Applicable
Industries Farms, Home Use, Construction Works , E
Moving Type
Crawler Excavator
Maximum Digging Height
4450mm
Maximum Digging Depth
3000mm
Max Digging Radius
3700mm
Color
Yellow or Customized
Accessories
Scraper Bucket, Bucket ,Hammer ,Log Grapple ,Drill
Hydraulic Cylinder Brand
Hengli
Hydraulic Pump Brand
Shimadzu
Hydraulic Valve Brand
Nhi
Operation Type
Hydraulic Opertion
Transport Package
2units/40hq
Production Capacity
500pieces/Month
Packaging & Delivery
Package Size
500.00cm * 500.00cm * 500.00cm
Package Gross Weight
1000.000kg
Product Description

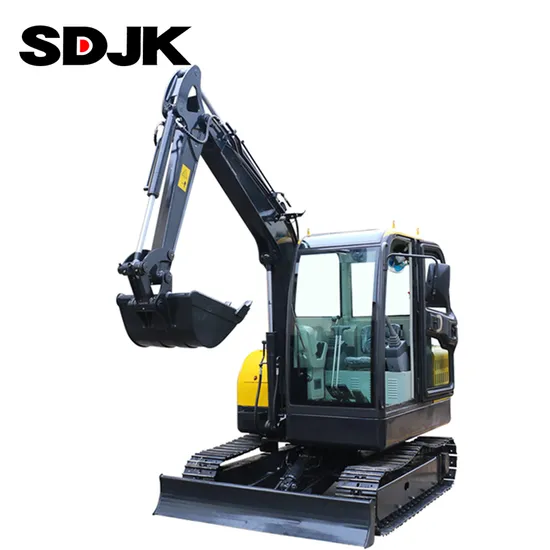

1. The 3.5 ton mini excavator is small and flexible,easy to operate and transport.(Ordinary farm car can carry on it). Above all it can work in a small space.
2. The china diesel hydraulic crawler excavator has the functions of digging, crushing, cleaning, drilling and pushing the soil, and can quickly replace the accessories and the utilization rate is greatly improved.
3. The configuration and technological are overall upgrade.And the machine adopt the Sino US joint venture hydraulic system,structural parts manufactured by Seiko,the surface of whole machine is derusted, which greatly improved the stability and the service.
4. The optimized large arms and bucket combine with a strong and reliable engine, resulting in a significant reduction in fuel consumption.
5. The china excavator is an ideal choice for all working conditions to maintain strong excavation force and competitive operation efficiency.
| Model | JKW-35 |
| Weights | 3500KG |
| Crawler length | 2175MM |
| Bucket capacity | 0.23M³ |
| Crawler width | 350MM |
| Engine type | CHANGCHAI490 |
| Power | 30KW |
| Fuel tank capcity | 50L |
| Hydraulic tank capcity | 43L |
| Bucket arm | 1230MM |
| Digging height | 4450MM |
| Discharge height | 3050MM |
| Turning speeds | 10rpm |
| Min.swing radius | 650-718MM |
| Gradeability | 26° |
| Tractive force | 12.5KN |
| Max.bucket digging force | 24KN |
| Package size | 4600*1650*2260MM |
>>
