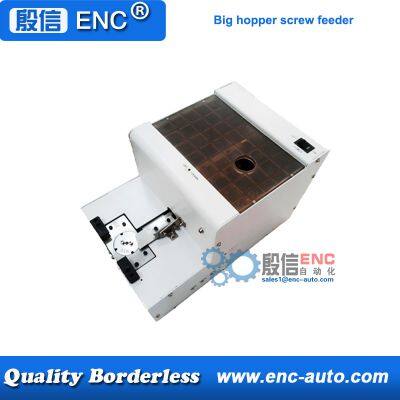

Screw feeding machineļ¼ This machine not only owns all the functions of the standard screw array machine,But also can be used as the screw feeder for the automation equipment,control it by the PLC of automation equipment,Signal cables is behind the machine.
1) Used as the screw feeder of automation equipment,more stable than vibration bowl.
2) The design of separating rail allows free adjustment,It can meet Screw M1.0~3.0mm.
3) The special design of the structure makes feeding fast and stable.
4) Can be controlled by PLC of automation equipment,Signal line is around the back.
5) The feeding and charging speed can be adjusted freely according to your requirement.
6) This machine is suitable for both special 1:1 short screws and screws with washer.
7) Small overall dimension,occupying little space,and easy to move.
8) Universal power supply:AC110~240V,50/60Hz.
Item
| ENC-1060T
|
Applicable screw
| Screw thread diameter
| M1.0~3.0 mm
|
Screw head type
| Standard screw head/Screw head with flat washer/screw head with spring washer/Screw head with flat washer and spring washer (Reference above)
|
Material of screw head
| All material screw
|
Length of screw(Max.)
| 20mm
|
Length of screw(Min.)
| Single screw:Diameter x 1.0/Screw with spring washer:diameter + (0.5 x diameter)/screw with spring washer and flat washer:diameter + (1.1 x diameter)
|
Output speed
| 2 pcs/second
|
Control mode
| Machine control system / PLC
|
Protection/Recovery/Function
| Overload protection circuit,Reverse power polarity prevention circuit
|
Input voltage
| AC110~240V,50/60Hz
|
Output voltage
| 12VDC 1A
|
Feeding mode
| Small rotary table
|
Overall dimension(L*W*H)
| 235*165*175mm
|
Weight(kg)
| 3.5kg
|
Accessories list
| Operation manual,AC controller,Hexagon wrench (Reference below)
|
