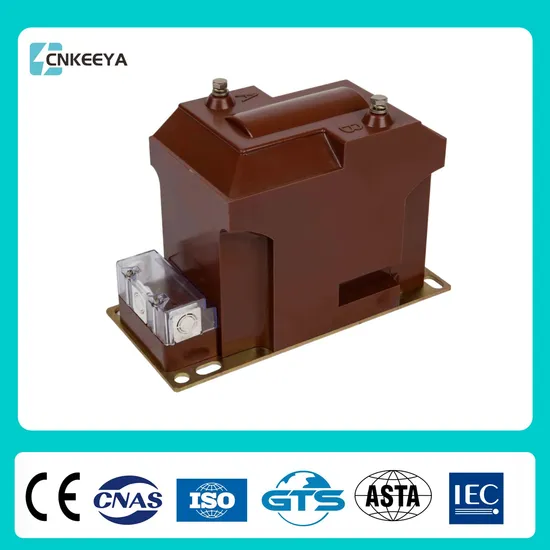

Cnkeeya PT 20kv Indoor Voltage Transformer Instrument Jdz11-20, Ratio 20/0.1kv

Product Description

Product Description JDZ10-10 and JDZX10-10 voltage transformers (hereinafter referred to as transformers) are suitable for rated frequencies of 50Hz or 60Hz
Used for energy metering, voltage monitoring, and relay protection in a 10kV power system.
Installation location: Indoor.
Environmental temperature: maximum+40 ºC; Minimum -5 ºC.
Altitude: not exceeding 1000m.
Atmospheric conditions: There is no serious pollution in the atmosphere
This type of transformer is a pillar type structure, made of epoxy resin fully enclosed casting, resistant to pollution and moisture, and also suitable for use in tropical regions,
Transformers do not require special maintenance, only regular cleaning of surface contaminants is required. Due to the use of epoxy resin fully enclosed casting, the size of the transformer is small
Lightweight and suitable for installation in any position and direction. Install a wiring terminal box at the secondary outlet terminal, with both the front and side of the terminal box
A hole (can be formed by lifting it by hand) is used in conjunction with the output terminal for wiring, ensuring safety and reliability. There are 6 mounting holes on the product base plate for installation.
Detailed Photos
Product Parameters

Product model	Rated primary voltage	Rated secondary voltage	Rated Output		Ultimate output	Rated insulation level
JDZ10-10	10kV	100V	15VA(0.2 class)	30VA(0.5 class)	200VA	12/42/75kV
