Basic Info.
Function
Put Pressure on The Plywood
Core Components
Motor, PLC
Main Cylinder
320*2100mm* 4 PCS
Lifting Cylinder
160*2100mm* 2 PCS
Transport Package
Plastic Film / Plywood
Specification
4220*2020*11300 mm
Production Capacity
3 Sets / Month
Product Description

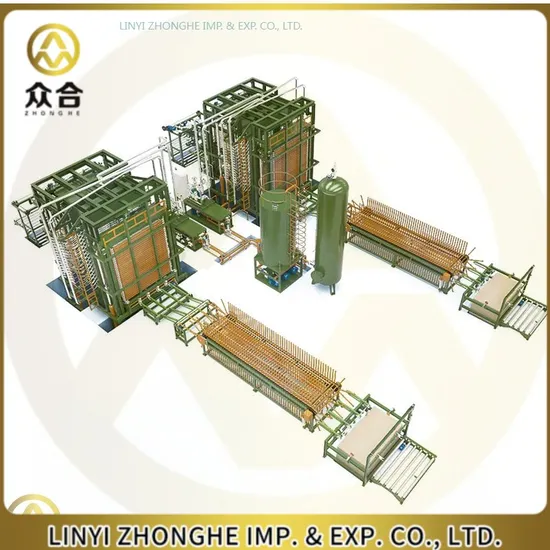

film faced plywood hot press machine
Detailed Photos
Product Parameters
500Ton Hot Press Machine
|
Pressure
| 500tons
|
Layers
| 15Layers
|
Hot platen distance
| 70mm
|
Hot plate qty
| 16pcs
|
Heating platen size
| 2700*1370*42mm
|
Qty of Cylinder
| 2
|
Diameter of cylinder
| 360mm
|
Stoke of cylinder
| 1050mm
|
Upper ,bottom crossbeam
| 900mm
|
Thickness of main frame steel
| 35mm Q235
|
Overall dimension
| 3550*1370*4650mm
|
Weight
| About 38Tons
|
600Ton Hot Press Machine
|
Pressure
| 600tons
|
Layers
| 10Layers
|
Hot platen distance
| 100mm
|
Hot plate qty
| 11pcs
|
Heating platen size
| 2700*1370*52mm(two inlet two outlet)
|
Diameter of cylinder
| 6*ø220mm,2*ø120mm,(lifting cylinder),totoal 8cylinder,Wuxi cylinder
|
Stoke of cylinder
| 1000mm
|
Upper ,bottom crossbeam
| 900mm
|
Thickness of main frame steel
| 35mm Q235
|
Overall dimension
| 3600mm*1370mm*4200mm
|
Weight
| About 42Tons
|
800Ton Hot Press Machine
|
Pressure
| 800tons
|
Layers
| 25Layers
|
Hot platen distance
| 80mm
|
Hot plate qty
| 26pcs
|
Heating platen size
| 2700*1370*42mm
|
Qty of Cylinder
| 4
|
Diameter of cylinder
| 320mm
|
Stoke of cylinder
| 2000mm
|
Upper ,bottom crossbeam
| 900mm
|
Thickness of main frame steel
| 40mm Q235/(4 groups frame)
|
Overall dimension
| 3600mm*1370mm*6720mm
|
Weight
| About 86Tons
|
Factory Display
Packaging & Shipping
ABOUT US
FAQ
1. Q: How many years had your company been established ? A:We specilized in wood based panel machinery for 10 years. 2. Q:QUALITY CONTROL? A: Each machine will be tested three times before delivery. 3. Q:DELIVERY TIME? A: 30-90 days upon receiving deposit. 4. Q:Factory Layout Design? A:We have engineer team to make layout drawing for customers for free. 5. Q:PAYMENT TERMS? A: T/T, L/C D/P are accepted. 6. Q:MOQ?
A: 1
>>
