PRODUCTS DESCRIPTION

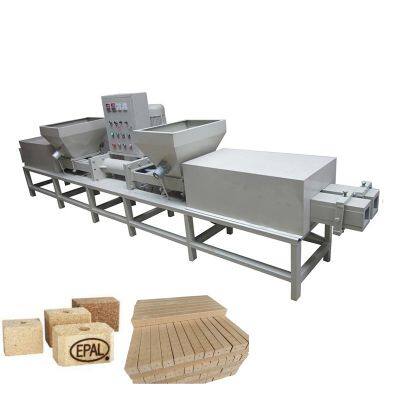

Pallet block machine is a core equipment designed for wooden pallet manufacturing, used to produce pallet support components (foot piers).
By mixing waste wood such as sawdust and wood shavings with glue, and then forming them through high-temperature and high-pressure molding processes, high-strength, waterproof standardized foot piers are made.
This equipment can replace traditional solid wood foot piers, and has the characteristics of environmental protection, low cost, and high efficiency. It is widely used in the production of fumigation-free pallets, export pallets, and high-demand logistics vehicles.
PRODUCT PARAMENTERS
DIVERSIFIED MATERIALS
Raw materials consist of two major categories: wood-based and non-wood materials. Wood materials include virgin timber (hardwoods like oak/maple, softwoods like pine/cedar, eucalyptus), wood processing residues (sawdust, wood powder, bark), and fast-growing plantation timber (poplar, paulownia). Non-wood materials involve bamboo resources (fiber, bamboo powder), agricultural waste (wheat/rice straw, coconut husk, bagasse), industrial byproducts (rice husk, palm empty fruit bunches), and other plant fibers (sisal, banana stems). Utilizing eco-friendly compression molding technology, these renewable resources achieve effective recycling while meeting diverse load-bearing requirements.
CORE FUNCTIONS AND FEATURS
High strength and stability: wood chips, wood shavings and glue (urea-formaldehyde glue or MDI glue) are used for hot pressing under high temperature and high pressure. It has strong load-bearing capacity, and it has been tested that it will not crack after being soaked in water for 48 hours, and it can adapt to harsh environments.
Environmental protection and energy saving: Wood waste is used as the main raw material, which is in line with the concept of sustainable development. At the same time, the efficient design of the dryer and hot pressing process (such as airflow drying technology) during the production process reduces energy consumption.
Precise size and customization: It supports standard specifications such as 90×90mm and 100×100mm, and can customize special shapes and sizes according to needs. The automatic cutting machine ensures cutting accuracy and smooth and flat cut surfaces.
Excellent processing performance: Strong nailing force, suitable for scenes such as fumigation-free wooden pallet brackets, and the finished product is clean and free of debris, which improves the efficiency of subsequent processing.
Efficient and flexible production: The fully automated production line (such as double-export/triple-export molding machine, automatic cutting) supports 4-8m³/24h production capacity, low labor demand (2-3 people), and can adapt to production needs of different scales.
PRODUCTION LINE
The pallet block production line focuses on the recycling of wood waste and achieves efficient and environmentally friendly production through automated processes. First, the multifunctional crusher processes the wood into sawdust/shavings, which are evenly mixed with glue in the glue mixer after the moisture content is controlled by the dryer. The mixed material enters the foot pier forming machine and is hot-pressed into standard or customized foot pier blanks through high temperature and high pressure. Subsequently, the automatic pier cutter accurately cuts the blanks to ensure dimensional accuracy. The production line supports fully automated operation, and the finished products have the characteristics of high strength and good weather resistance. They are widely used in the manufacture of fumigation-free wooden pallets, effectively reducing wood consumption and production costs.
product packaging
our factory
The factory covers an area of 6,000 square meters and has a full set of advanced molded pallet production lines. It is a high-quality molded pallet overall solution provider. The company's pallets are diverse in style and leading in quality. We can design and develop exclusive molded pallets and production molds for customers' products. We practice the development and management concept of linking pallets with production equipment, continuously optimize production processes and equipment performance, and tailor a full set of molded pallet production lines for customers, becoming a leader in the molded industry integrating R&D, production, and sales.
FAQ
What is a pallet blockmachine?
The pallet block machine is an automated production equipment used to quickly make the supporting pallet blocks at the bottom of wooden pallets. It produces standard-sized pallet pallet blocks by pressing and shaping wood scraps or recycled wood, replacing traditional manual cutting, improving efficiency and reducing costs.
Is the equipment complicated to operate? Is professional training required?
The equipment uses an automated control system with a simple and intuitive operation interface. We provide free operation training to ensure that users master the basic operations, and come with detailed instructions and after-sales technical support.
What are the raw materials for producing pallet blocks?
Supports a variety of raw materials: wood scraps, sawdust, recycled wood, and even some straw fibers.
Can the size and load-bearing capacity of the pallet block be customized?
Supports customized molds to produce pallet blocks of different heights and shapes
Does the equipment consume a lot of energy?
The standard model has a power of 16 kW, and the comprehensive energy consumption cost is reduced by about 40%.
>>
