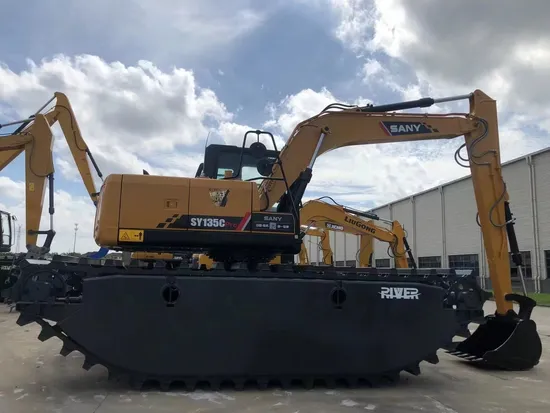

13 Ton Amphibious Excavator Sy135c with Floating Pontoon Geninue Quality

Product Description

13 Ton Amphibious Excavator SY135C With Floating Pontoon Geninue Quality
(Operating Weight: 21t)

DIMENSION OF SY135C AMPHIBIOUS EXCAVATOR
Model	Unit	Value
Operating weight	Kg	28000
Boom and stick length	mm	11000
Bucket capacity	m³	0.4
Working scope	Unit	Value
Max digging radius	mm	11735
Max digging height	mm	11940
Max digging depth	mm	10005
Max unloading height	mm	9841
Min turning radius	mm	2500
Main performance	Unit	Value
Driving speed	km/h	2.3
Swing speed	r/min	12
Gradeability	%	49
Ground specific pressure	kPa	22.8
Bucket digging force	kN	77
Stick digging force	kN	48.8
Travel motor	Unit	Value
Motor model	/	Mottrol(Doosan)TM40
Output torque	N.m(kgf.m)	45600(4650)
Continuous pressure	MPa(kgf/cm2)	34.3(350)
Engine	Unit	Value
Engine model	ISUZUJAPAN	4JJ1-XDJAG-01-C3
Rated power/speed	Kw/rpm	73/2000
Max torque/speed	Nm/rpm	365/1600
Displacement	L	2.999
Hydraulic system	Unit	Value
Main pump	/	2 Piston pumps
Main pump rated flow	L/min	247
Main safety valve pressure	MPa	/
Walking system pressure	MPa	35
Swing system pressure	MPa	26
Pilot system pressure	MPa	/
Oil capacity	Unit	Value
Fuel tank volume	L	240
Hydraulic oil tank volume	L	150
Engine oil capacity	L	15
Dimensions	Unit	Value
Overall machine length	mm	10500
Overall machine width without side pontoons	mm	4000
Overall machine height(to boom)	mm	3700
Turntable width	mm	2450
Single pontoon length	mm	7000
Single pontoon width	mm	1250
Single pontoon height	mm	1600
pontoon overall width	mm	4000
Pontoon landed length	mm	2800
Track gauge	mm	2560
Distance between sprocket and idler	mm	6110
Counterweight ground clearance	mm	1784
Min ground clearance	mm	1047
Max turning radius of the tail	mm	1910
Optional	Unit	Value
Side pontoon length	mm	6300
Side pontoon width	mm	1500
Side pontoon height	mm	1230
Positioning piles	PCS	4
The length of Positioning piles	mm	6000

Usage of River SY135C Amphibious Excavator
SY205C amphibious excavators made by RIVER is a Tier IV Emission Standard Machine, which are primarily used for dredging, land reclamation, swamp and wetland construction, waterway clearing, and environmental restoration projects.
This amphibious excavator comes with an 9-meter extended arm. However, we can customize the extension length to meet your specific requirements, which will alter the digging range, the long reach front can be 11 meters, 13 meters, 15 meters or even longer. If you have any customization needs, please contact us, and we will provide you with a comprehensive solution! Main Application of SY135C Amphibious Excavator
1. Wetland Restoration: Ideal for restoring marshy areas, removing invasive species, and reshaping terrain.
2. Dredging Operations: Efficiently clears sediment from rivers, lakes, and ponds, reaching inaccessible areas.
3. Aquaculture Construction: Essential for building ponds, creating access channels, and installing aquaculture infrastructure.
4. Flood Control: Crucial in managing water levels, clearing debris, and reinforcing embankments during flood events.
5. Environmental Remediation: Safely removes contaminated soil and debris from water bodies in polluted sites.
The Supplying Range of Swamp Buggy
We offer a range of models and brands of amphibious excavators spanning from 5 to 50 tons, along with specialized amphibious undercarriage compatible with excavators within the same weight range. Additionally, if you require modifications for a second-hand excavator, feel free to reach out to us for tailored solutions.
The Advantage of Lightweight Design Pontoon Undercarriage

WHY CHOOSE RIVER?
1. The Key Components for Fabricating Amphibious Undercarriage
2. How To Select Suitable Attachment for Amphibious Excavator?
We offer optional side pontoons and positioning piles, allowing customers to choose different equipment based on their specific project needs. This significantly enhances the flexibility and scalability of their operations. With over 20 years of experience in river dredging, river's amphibious excavator have been field-tested by thousands of customers and hundreds of projects, ensuring reliable support for your construction projects.
3. Our Cooperated Excavator Brands
4. The Production Process of Fabricating Amphibious Undercarriage
5. Overseas Cooperation

---
