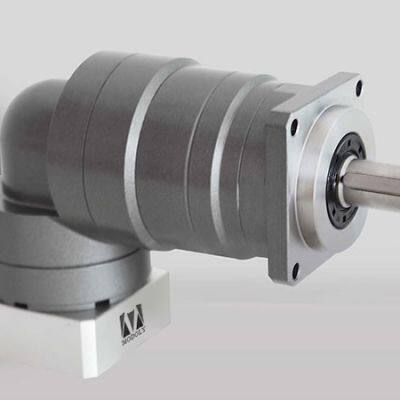

MVBR Series MVBR 40 planetary reducer gearbox

Product Details

Product Description

Product Description
Technical Specifications & Features:
Torque Performance:
Maximum Torque Range: 28-40Nm (T₁)
Rated Output Torque: 14-20Nm (T₂n)
Emergency Braking Capacity: 65Nm
Operational Parameters:
High-Speed Capability:
Maximum Input Speed: 8000 rpm
Rated Input Speed: 4000 rpm
Load Capacity:
Axial Force: 610N
Radial Force: 700N
Efficiency & Dynamics:
90% Energy Efficiency (η)
Ultra-Low Inertia: 0.03 kg·cm³
Lightweight Design: 2.2 kg
Durability & Protection:
IP65 Rated Enclosure (Dustproof/Water Resistant)
Lifetime Lubrication System
Wide Temperature Range: -15°C to +45°C
Environmental Specifications:
Low Noise Operation: ≤63 dB(A)
Standard Industrial Gray Finish
Engineering Advantages:
✓ Exceptional speed capability for precision applications
✓ Optimized power-to-weight ratio
✓ Maintenance-free operation
✓ Reliable performance in demanding conditions
Typical Applications:
High-speed automation systems
Precision robotics
CNC machinery
Medical equipment drives
Packaging systems

---
