Whole Tire Tyre Shredder for Environmentally Friendly Waste Management with Conveyor

Product Description

Product Description Waste Tire Shredder,Tire Crusher,Tire shredding Machine For Tire Recycling Plant

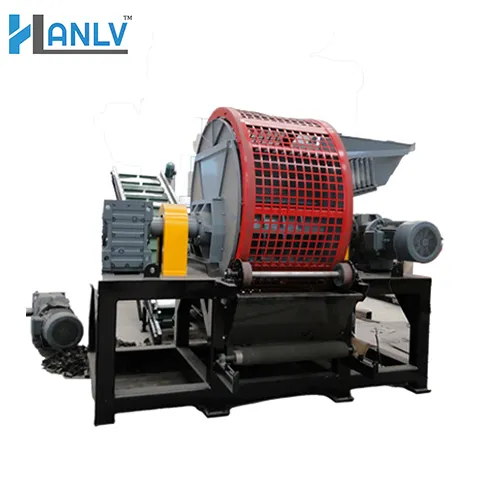

ZPS Tire Shredder is used to shred radial tire and fiber tire into tire chips of 50x50mm size in ambient process, the tire needs to be debeaded before shredding to extended service life of the shredder blades. It mainly consists of motor, speed reducer, machine frame, shredding blades, rotary screener, transmission system, etc.
Product HighlightsStructure and Principle
The shredding chamber adopts folio compact structure for easy maintenance;
The shredding blade edges are made of hard alloy after special hardness treatment, wear-proof. The blade edges are made replaceable without dismantling the machine, blades changing and repairing jobs are made easy and not costly any more. Heavy-duty, advanced technology and high output;
The machine adopts low noise, steady and high torque planet-gear speed reducer, easy and safe operation;
The rotary screener is of steel net structure which has large area for screening qualified size of tire chips to discharge quickly. Low consumption, high output and advanced technology. Technical Data Technical Parameters

Item	Machine Name And Type	TECHNICAL DATA
1	ZPS-1300 Double shaft shredder	Model: ZPS-1300 Capacity(TON/HOUR) : 2-5 Shredding Chamber (mm) :1300x1000 Output size(mm): ≤50MM Main power(kw): 55+55+7.5KW Feeding conveyor: 3.7kw Discharge Conveyor: 2.2kw
2	ZPS-1200 Double shaft shredder	Model: ZPS-1200 Capacity(TON/HOUR) : 2-4 Shredding Chamber (mm) :1200x950 Output size(mm): ≤50MM Main power(kw): 45+45+5.5KW Feeding conveyor: 3.7kw Discharge Conveyor: 2.2kw
3	ZPS-1000 Double shaft shredder	Model: ZPS-1000 Capacity(TON/HOUR) : 1.5-3 Shredding Chamber(mm): 1000x800 Output size(mm): ≤50MM Main power(kw): 30+30+4KW Feeding conveyor: 3kw Discharge Conveyor: 1.5kw
4	ZPS-800 Double shaft shredder	Model: ZPS-800 Capacity(TON/HOUR) : 1.5-2 Shredding Chamber(mm): 800x700 Output size(mm): ≤50MM Main power(kw): 22+22+3KW Feeding conveyor: 2.2kw Discharge Conveyor: 1.1kw
5	ZPS-600 Double shaft shredder	Model: ZPS-600 Capacity(TON/HOUR) : 0.5-1 Shredding Chamber(mm): 600x500 Output size(mm): ≤50MM Main power(kw): 15+15+2.2KW Feeding conveyor: 1.5kw Discharge Conveyor: 1.1kw

Product Details



Discharge Effect
FAQ FAQ
Q:How long is your delivery time?
A:Generally, it will be about 35-40 days after deposit, which also will affected by the actual situation of the project.
Q:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
A: HANLV has people special for after-sale service,if customers outside China have problems when machine working,just feel free to send us the picture or video to show us,we will give you solutions in 24hours.
Q:Could We Visit Your Factory and Test the Machine?
A: We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
